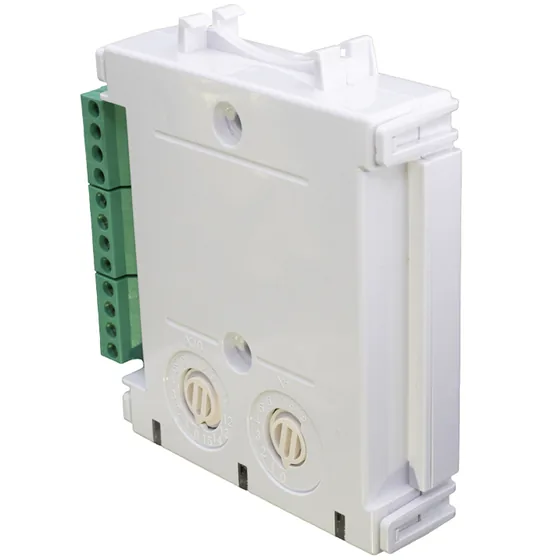

System Sensor M200EA Series Addressable Input/Output Modules
The M200EA addressable input and output modules, which can be mounted in a common wall box, on a DIN rail or in their dedicated enclosure, with enlarged light pipes for status.
- M201EA single output, M210EA single input, M220EA dual input, M221EA dual input and single output
- Built-in short circuit isolators, addresses set on rotary switches
- Panel can read the module power voltage; high power loop 48V ready
- M221EA output rated 2A at 30VDC, resistive load
- 15 to 32VDC, -20 to +60°C, IP30 (IP44 in M200E-SMB), 118g
- Intertek approval
Standards and approvals: Intertek
Specifications
Specifications
| Specification | M201EA | M210EA | M220EA | M221EA |
|---|---|---|---|---|
| Operating Voltage Range | 15 to 32VDC | 15 to 32VDC | 15 to 32VDC | 15 to 32VDC |
| Maximum Standby Current | 160µA at 24VDC no communications | |||
| Relay Specifications | Normal and unsupervised form C ratings 2A at 30VDC, resistive load | |||
| Operating Temperature Range | -20oC to +60oC | -20oC to +60oC | -20oC to +60oC | -20oC to +60oC |
| Humidity | 5 to 95% Relative Humidity (non-condensing) | 5 to 95% Relative Humidity (non-condensing) | 5 to 95% Relative Humidity (non-condensing) | 5 to 95% Relative Humidity (non-condensing) |
| IP Rating | IP30 (IP44 in M200E-SMB) | IP30 (IP44 in M200E-SMB) | IP30 (IP44 in M200E-SMB) | IP30 (IP44 in M200E-SMB) |
| Height | 22mm | 22mm | 22mm | 22mm |
| Length | 82mm | 82mm | 82mm | 82mm |
| Width | 93mm including terminal block | 93mm including terminal block | 93mm including terminal block | 93mm including terminal block |
| Weight | 118g | 118g | 118g | 118g |
| Maximum Wire Gauge for Terminals | 2.5mm2 | 2.5mm2 | 2.5mm2 | 2.5mm2 |
| M210EA Maximum Standby Current | 140µA at 24VDC, no communications | |||
| Other Devices in Range | M220EA and M221EA | M220EA and M221EA | M220EA and M221EA | |
| M220EA Maximum Standby Current | 140µA at 24VDC, no communications | |||
| M221EA Maximum Standby Current | 140µA at 24VDC, no communications | |||
| M221EA Output Rating | 2A at 30VDC, resistive load |
Specifications as published by System Sensor. Please confirm the exact model with us before ordering.
