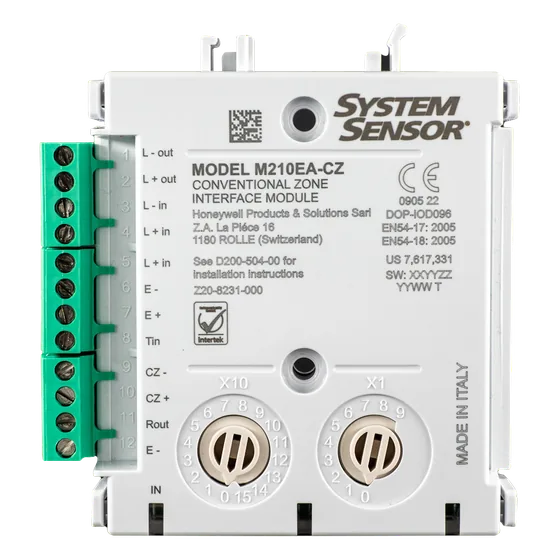

System Sensor M210EA-CZ and M210EA-CZR Conventional Zone Monitor Modules
Single input conventional zone modules from the M200EA family, with an end of line capacitor (CZ) or resistor (CZR); the CZR version also accepts intrinsically safe conventional detectors.
- M210EA-CZ uses an EOL capacitor, M210EA-CZR an EOL resistor
- Connects conventional detectors (CZ and CZR) or IS conventional detectors (CZR only)
- Supply 18 to 32 VDC from the loop or an external supply
- Built-in short circuit isolators, CLIP and Advanced protocol
- Monitors open and short circuit faults, full backward compatibility
- IP30 (IP44 in M200E-SMB), 118g, Intertek approval
Standards and approvals: Intertek
Specifications
Specifications
| Specification | M210EA-CZ | M210EA-CZR |
|---|---|---|
| Operating Voltage Range | 15 to 32VDC | 15 to 32VDC |
| LED Cutoff Voltage | 16.5 VDC | 16.5 VDC |
| Max Standby Current @ 24V | 120 uA - (No communication, conventional zone externally power supplied connected | to EOL only) | 1.3mA - (No communication, conventional zone loop powered connected to capacitive | EOL only) | 6.3mA - (No communication, conventional zone loop powered connected to resistive | EOL only) | 120 uA - (No communication, conventional zone externally power supplied connected | to EOL only) | 1.3mA - (No communication, conventional zone loop powered connected to capacitive | EOL only) | 6.3mA - (No communication, conventional zone loop powered connected to resistive | EOL only) |
| Supply Voltage | 18 to 32 VDC (either from loop or external supply) | 18 to 32 VDC (either from loop or external supply) |
| Max Standby Load Current (CZ) | 3mA in 18-32V range | 3mA in 18-32V range |
| Max Standby Load Current (CZR) | 3,8mA in 18-32V range | 3,8mA in 18-32V range |
| Max Conventional Line Resistance | 50 Ohm | 50 Ohm |
| Max Zone Load (CZ) | 17.5mA (limited internally) | 17.5mA (limited internally) |
| Max Zone Load (CZR) | 60mA (limited internally) | 60mA (limited internally) |
| End of Line Capacitor (CZ) | 47μF non-polarised (Supplied) | 47μF non-polarised (Supplied) |
| End of Line Resistor (CZR) | 3.9 kOhm, 5% (Supplied) | 3.9 kOhm, 5% (Supplied) |
| Humidity | 5% to 95% Relative Humidity (non-condensing) | 5% to 95% Relative Humidity (non-condensing) |
| IP Rating | IP30 (IP44 in M200E-SMB) | IP30 (IP44 in M200E-SMB) |
| Height | 22mm | 22mm |
| Length | 93mm (including terminal blocks) | 93mm (including terminal blocks) |
| Width | 99mm (including DIN brackets) | 99mm (including DIN brackets) |
| Weight | 118g | 118g |
| Maximum Wire Gauge for Terminals | 2.5mm2 | 2.5mm2 |
Specifications as published by System Sensor. Please confirm the exact model with us before ordering.
