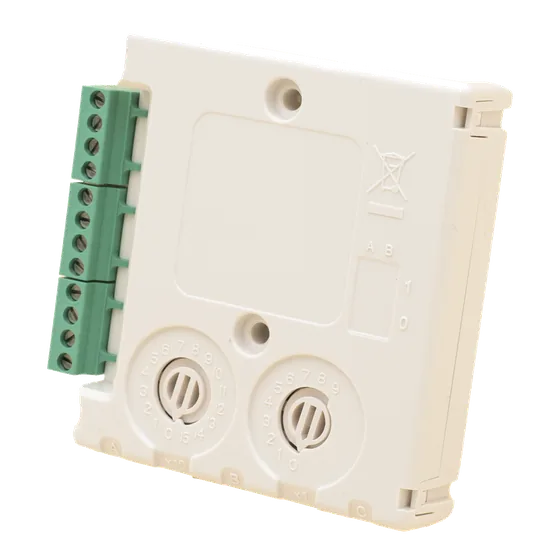

System Sensor M210E-CZ and M210E-CZR Conventional Zone Monitor Modules
Modules that connect a zone of conventional detectors, or intrinsically safe conventional detectors on the CZR version, to a System Sensor analogue addressable system.
- CZ for 100, 400 and EC series detectors; CZR for IS conventional detectors
- Also compatible with S300 and ECO1000 detectors and 6500R and 6500RS beam detectors
- Zone powered from the loop or from a 24V power supply, with the loop fully isolated when externally powered
- Monitors open circuit and short circuit faults, remote reset of the zone
- Tri-colour status LED, weight 110g
- CPR
Standards and approvals: CPR
Specifications
Specifications
| Specification | M210E-CZ | M210E-CZR |
|---|---|---|
| Max Standby current @ 24V | 500uA (communication every 5s with LED blink enabled, with external supply for conventional zone) | 6.7mA (communication every 5s with LED blink enabled, loop powered conventional zone, R. EOL only) | 500uA (communication every 5s with LED blink enabled, with external supply for conventional zone) | 6.7mA (communication every 5s with LED blink enabled, loop powered conventional zone, R. EOL only) |
| Maximum conventional zone current limit | 60mA | 60mA |
| External power supply voltage | 12 to 28.5V (if loop powered) | 12 to 28.5V (if loop powered) |
| Maximum series resistance | 50Ω | 50Ω |
| Max LED current @ 24VDC | Green 6.6mA Red 2.2mA Yellow 8.8mA | Green 6.6mA Red 2.2mA Yellow 8.8mA |
| Initial power up time | 3 seconds | 3 seconds |
| Humidity | 5% to 95% Relative Humidity (non-condensing) | 5% to 95% Relative Humidity (non-condensing) |
| Height | 23mm | 23mm |
| Length | 93mm | 93mm |
| Width | 83mm | 83mm |
| Weight | 110g | 110g |
| Maximum Wire Gauge for Terminals | 2.5mm2 | 2.5mm2 |
Specifications as published by System Sensor. Please confirm the exact model with us before ordering.
