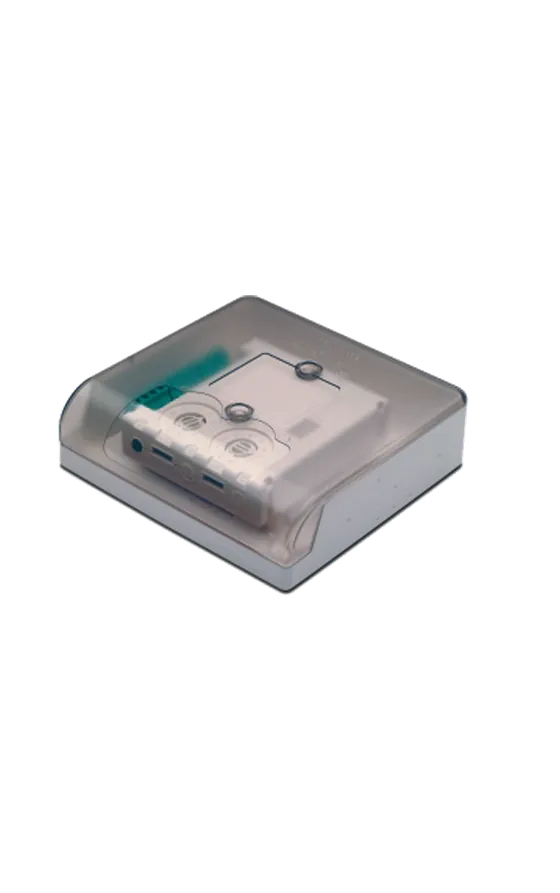

Dealer for Morley by HoneywellMorley by Honeywell MI/DMMI Addressable Single Input Monitor Module
A single channel addressable input module for Morley-IAS intelligent panels. It watches an external device and reports normal, open circuit and alarm states to the panel.
- One monitored input circuit: normal, open circuit and alarm
- Mounts in a wall box (M200E-SMB) or on a DIN rail (M200E-DIN)
- 15 to 30 Vdc operating voltage
- Weight 100g
- -20°C to +60°C, 0 to 95% humidity non-condensing
Download the official Morley by Honeywell catalogue (PDF, 2.3 MB)
Specifications
Specifications
| Specification | MI/DMMI |
|---|---|
| Dimensions (H x W x D) | 93 x 94 x 23 (mm) |
| Weight | 100g |
| Operating Temperature | -20 ºC to +60 ºC |
| Humidity | 0 to 95% maximum non-condensing |
| Operating voltage | 15 to 30 Vdc |
| No comms | 310μA at 24 Vdc maximum |
| 1 comms every 5 seconds with LED blink | 510μA at 24 Vdc maximum |
| Output Rating | 5A at 30 Vdc, resistive load. 5A at 240 Vac, resistive load. |
| Terminal Wire | 2.5 mm2 maximum |
| MI-DMMI | Single channel addressable input module |
Specifications as published by Morley by Honeywell. Please confirm the exact model with us before ordering.
