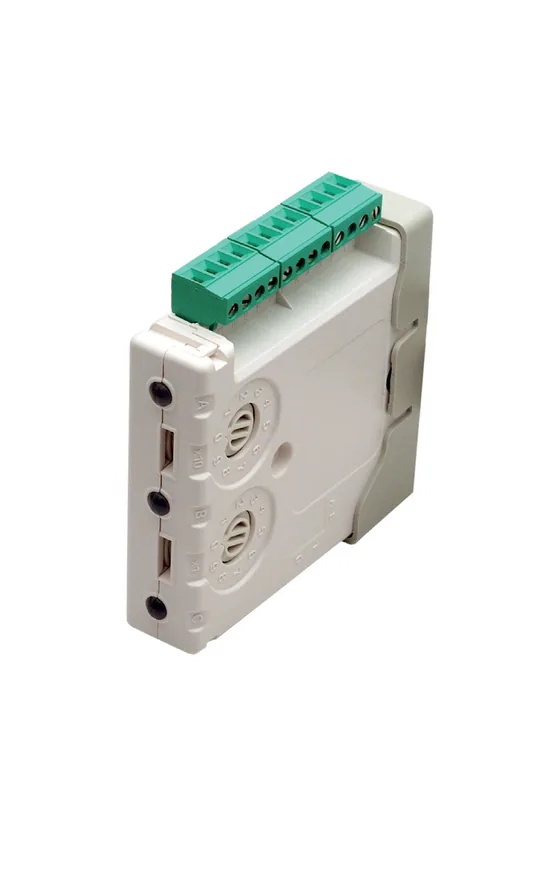

Dealer for Morley by HoneywellMorley by Honeywell MI/DCZRM Addressable Zone Monitor Module
A zone module that lets a zone of two-wire non-addressable (conventional) devices communicate with a Morley-EN protocol analogue addressable system.
- Monitors one zone of two-wire non-addressable devices
- Reports an open or short circuit on the zone wiring as a fault
- External fault input that can be used for power supply monitoring
- Uses one of the 99 module addresses on a loop
- 18 to 28.5Vdc, 3.9k end of line resistor
- 110g, -20°C to +60°C
Download the official Morley by Honeywell catalogue (PDF, 2.3 MB)
Specifications
Specifications
| Specification | MI/DCZRM |
|---|---|
| Height | 23mm |
| Length | 93mm |
| Width | 83mm |
| Weight | 110g |
| Max Wire Gauge for Terminals | 2.5mm2 |
| Operating Voltage Range | 18 to 28.5Vdc |
| Max. Standby Current | 288μA maximum (conventional zone connected to external supply) |
| End of Line Resistor Value | 3.9k |
| Temperature Range | -20°C to +60°C |
| Humidity | 5% to 95% relative humidity (non-condensing) |
| MI-DCZRM | Addressable Zone Module |
Specifications as published by Morley by Honeywell. Please confirm the exact model with us before ordering.
