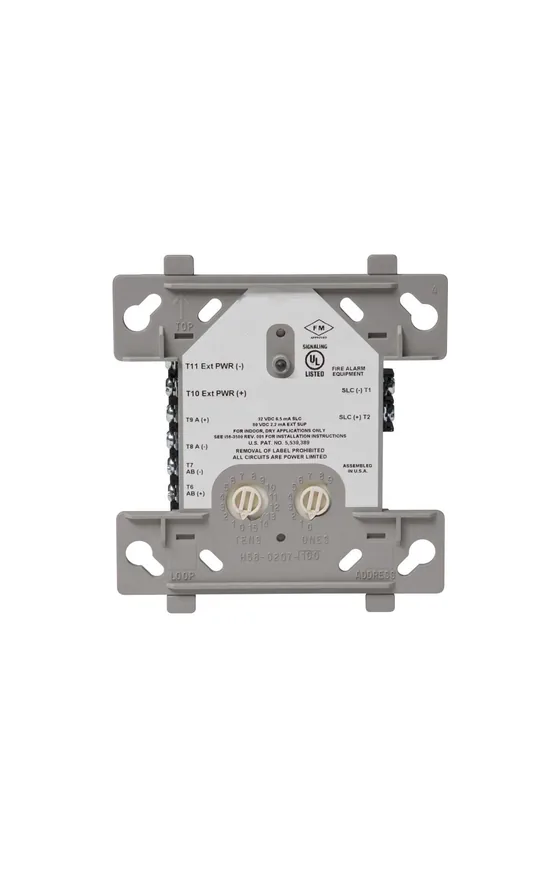

Dealer for NotifierNotifier FRM-1 Addressable Relay Module
An addressable relay module giving a dry-contact output to switch auxiliary devices such as fans, dampers and control equipment, using one of 159 module addresses on the SLC loop.
- Dry-contact output for fans, dampers and control equipment
- Activated manually or through panel programming
- 15 to 32 VDC, 230 µA average current on direct poll
- Rotary address switches and panel-controlled status LED
- 0°C to 49°C, 10% to 93% humidity non-condensing
- UL listed and FM approved, ULC listed for the A version, with CSFM, MEA and FDNY listings
Standards and approvals: UL: S635, ULC: S3705 (A version only), FM Approved, CSFM: 7300-0028:0219, MEA: 14-00-E, FDNY: COA #6067, #6065
Specifications
Specifications
| Specification | FRM-1 |
|---|---|
| Normal operating voltage | 15 to 32 VDC. |
| Maximum current draw | 6.5 mA (LED on). |
| Average operating current | 230 μA direct poll; 255 μA group poll. |
| EOL resistance | not used. |
| Temperature range | 32°F to 120°F (0°C to 49°C). |
| Humidity range | 10% to 93% non-condensing. |
| Dimensions | 4.5" (114.3 mm) high x 4" (101.6 mm) wide x 1.25" (31.75 mm) deep. Mounts to a 4" (101.6 mm) square x 2.125" (53.975 mm) deep box. |
| Accessories | SMB500 Electrical Box; CB500 Barrier |
Specifications as published by Notifier. Please confirm the exact model with us before ordering.
