Notifier FCM-1 Addressable Control Module
An intelligent addressable control module that supervises wiring to devices powered from an external supply, such as horns, strobes or bells, with Class A or Class B supervision.

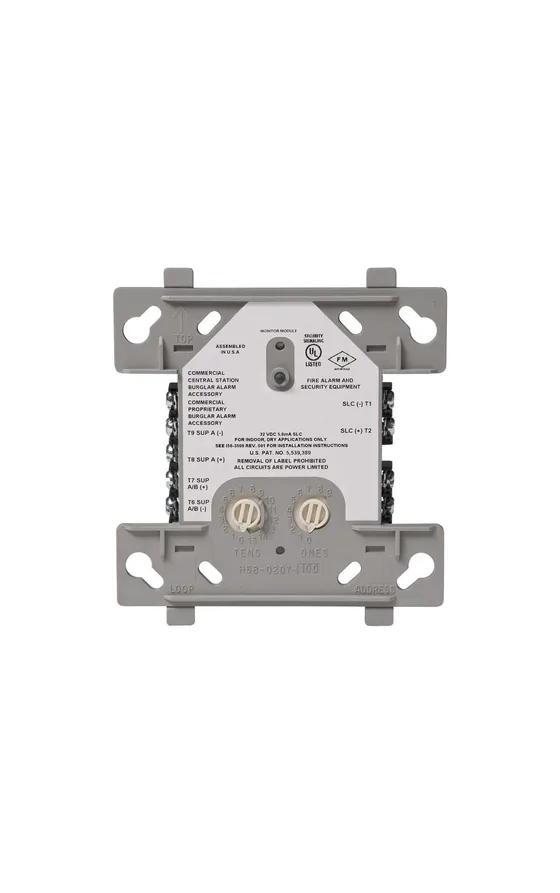

Dealer for NotifierNotifier FMM-1 Addressable Monitor Module
An intelligent monitor module that supervises a circuit of dry-contact devices, such as conventional heat detectors and pull stations, or monitors and powers a circuit of two-wire smoke detectors.
- Class A supervised wiring to the monitored device
- Built-in type identification as a monitor module
- Direct-dial address entry, 01 to 159
- LED shows normal or off-normal state
- 15 to 32 VDC, 0°C to 49°C
- UL and ULC listed, FM approved, with CSFM, MEA and FDNY listings
Standards and approvals: UL: S635, ULC: S635, FM Approved, CSFM: 7300-0028:0219, MEA: 457-99-E, FDNY: COA #6038 (NFS2-640, NFS-320), COA# 6058
Specifications
Specifications
| Specification | FMM-1 |
|---|---|
| Nominal operating voltage | 15 to 32 VDC. |
| Maximum current draw | 5.0 mA (LED on). |
| Average operating current | 350 μA (LED flashing), 1 com- munication every 5 seconds, 47k EOL. |
| Maximum IDC wiring resistance | 40 ohms. |
| EOL resistance | 47K ohms. |
| Temperature range | 32°F to 120°F (0°C to 49°C). |
| Humidity range | 10% to 93% noncondensing. |
| Dimensions | 4.5" (11.43 cm) high x 4" (10.16 cm) wide x 1.25" (3.175 cm) deep. Mounts to a 4" (10.16 cm) square x 2.125" (5.398 cm) deep box. |
| Direct-dial entry of address | 01 to 159 on FlashScan loops; 01 to 99 on CLIP loops. |
Specifications as published by Notifier. Please confirm the exact model with us before ordering.
