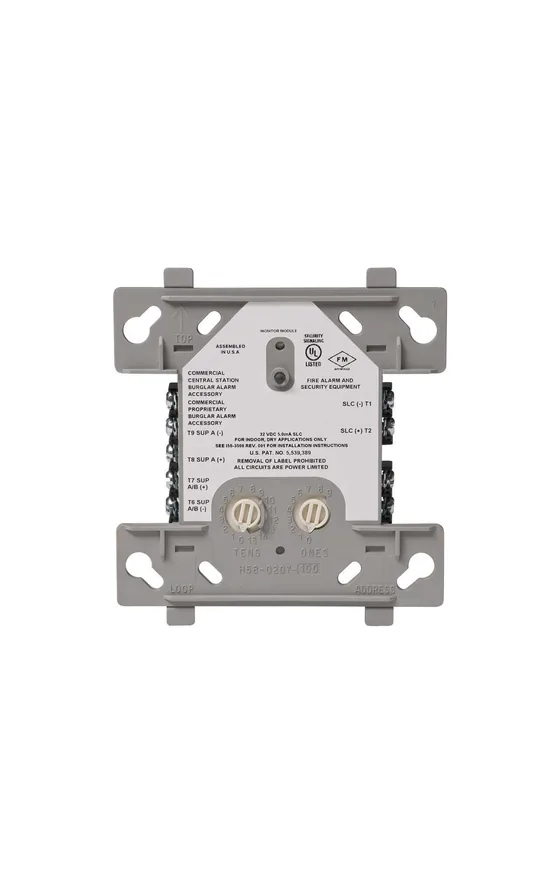

Dealer for NotifierNotifier FZM-1 Zone Interface Module
A standard-sized zone module that monitors and supervises compatible two-wire, 24 volt smoke detectors on a Style D (Class A) or Style B (Class B) circuit and reports the zone to the panel.
- Reports one zone of two-wire detectors as normal, open or alarm
- Style D (Class A) or Style B (Class B) circuit
- 24 volt power-limited detector supply, 90 mA per module maximum
- Direct-dial address entry, 01 to 159
- 15 to 32 VDC, 0°C to 49°C
- UL and ULC listed, FM approved, with CSFM, MEA and FDNY listings
Standards and approvals: UL: S635, ULC: S635, FM Approved, CSFM: 7300-0028:0219, MEA: 457-99-E, FDNY: COA #6038 (NFS2-640, NFS-320), COA# 6058
Specifications
Specifications
| Specification | FZM-1 |
|---|---|
| Nominal operating voltage | 15 to 32 VDC. |
| Maximum current draw | 5.1 mA (LED on). |
| Maximum IDC wiring resistance | 25 ohms. |
| Average operating current | 300 μA, 1 communication and 1 LED flash every 5 seconds, 3.9k eol. |
| EOL resistance | 3.9K ohms. |
| DC voltage | 24 volts power limited. Ripple voltage: 0.1 Vrms maximum. Current: 90 mA per module maximum. |
| Temperature range | 32°F to 120°F (0°C to 49°C). |
| Humidity range | 10% to 93% noncondensing. |
| Dimensions | 4.5" (11.43 cm) high x 4" (10.16 cm) wide x 1.25" (3.175 cm) deep. Mounts to a 4" (10.16 cm) square x 2.125" (5.398 cm) deep box. |
Specifications as published by Notifier. Please confirm the exact model with us before ordering.
