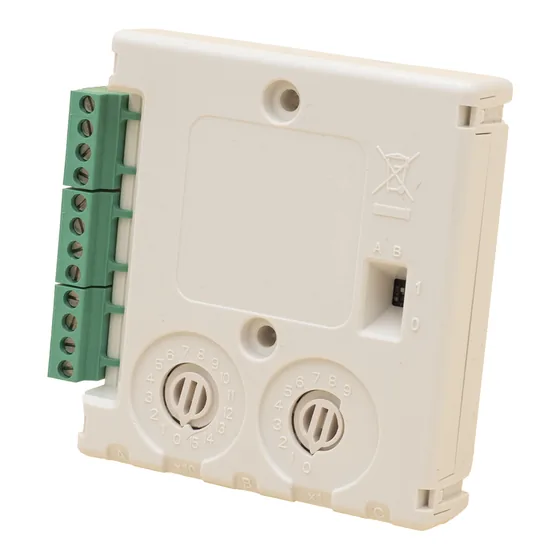

System Sensor M200E Series Addressable Input/Output and Isolator Modules
Single and multi-way addressable modules on one mechanical platform that can be box, panel or DIN rail mounted, with the address switch and LEDs visible whichever mounting is used.
- M200XE isolator, M201E single output, M210E single input, M220E dual input, M221E dual input and single output
- Built-in short circuit isolators, selectable module by module
- Tri-colour LEDs and decade address switches visible in two planes
- M221E output rated 2A at 30VDC, resistive load
- 15 to 30VDC, -20 to +60°C, IP30 (IP50 in M200E-SMB)
- LPCB, VdS and BOSEC, VdS 2489
Standards and approvals: LPCB, VdS, BOSEC, VdS 2489
Specifications
Specifications
| Specification | M200XE | M201E | M210E | M220E | M221E |
|---|---|---|---|---|---|
| Operating Voltage Range | 15 to 30VDC | 15 to 30VDC | 15 to 30VDC | 15 to 30VDC | 15 to 30VDC |
| Maximum Standby Current | 200µA at 24VDC | 310µA at 24VDC no communications | 510µA at 24VDC, one communication each 5 seconds with LED blink enabled | |||
| Fault Detection Delay | 100 to 400ms | ||||
| Operating Temperature Range | -20oC to +60oC | -20oC to +60oC | -20oC to +60oC | -20oC to +60oC | -20oC to +60oC |
| Humidity | 5 to 95% Relative Humidity (non-condensing) | 5 to 95% Relative Humidity (non-condensing) | 5 to 95% Relative Humidity (non-condensing) | 5 to 95% Relative Humidity (non-condensing) | 5 to 95% Relative Humidity (non-condensing) |
| IP Rating | IP30 (IP50 in M200E-SMB) | IP30 (IP50 in M200E-SMB) | IP30 (IP50 in M200E-SMB) | IP30 (IP50 in M200E-SMB) | IP30 (IP50 in M200E-SMB) |
| Height | 23mm | 23mm | 23mm | 23mm | 23mm |
| Length | 93mm | 93mm | 93mm | 93mm | 93mm |
| Width | 94mm | 94mm including terminal block | 94mm including terminal block | 94mm including terminal block | 94mm including terminal block |
| Weight | 62g | 62g | M210E 100g | ||
| Maximum Wire Gauge for Terminals | 2.5mm2 | 2.5mm2 | 2.5mm2 | 2.5mm2 | 2.5mm2 |
| Relay Specifications | Normal and unsupervised form C ratings 2A at 30VDC, resistive load | ||||
| M210E Maximum Standby Current | 310µA at 24VDC, no communications | 510µA at 24VDC, One communication each 5 seconds with LED blink enabled | ||||
| Other Devices in Range | M220E and M221E | M220E and M221E | M220E and M221E | ||
| M220E Maximum Standby Current | 340µA at 24VDC, no communications | 600µA at 24VDC, One communication every 5 seconds with LED blink enabled | ||||
| M221E Maximum Standby Current | 340µA at 24VDC, no communications | 660µA at 24VDC, One communication every 5 seconds with LED blink enabled | ||||
| M221E Output Rating | 2A at 30VDC, resistive load. |
Specifications as published by System Sensor. Please confirm the exact model with us before ordering.
