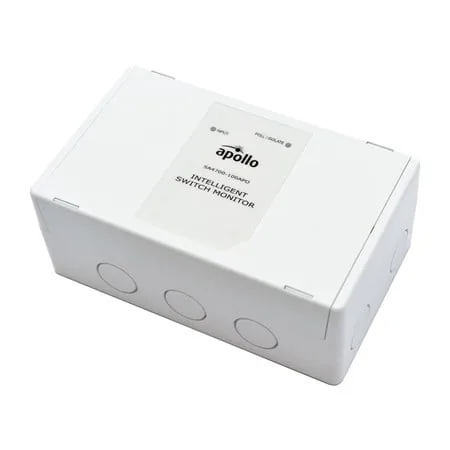

Authorised distributor for ApolloApollo Intelligent Switch Monitor Module
Monitors one or more single pole, volt-free contacts wired on a single pair of cables and reports their status to the fire control panel.
- Priority and non-priority settings
- Switchable input time delay for monitoring flow switches
- EN 54-17 and EN 54-18 certified
- Semi flush or surface mounting
- 17 to 35 V dc supply, -40 to 70°C, IP52
- XP95, Discovery and CoreProtocol, 10 year warranty
Standards and approvals: EN 54-17, EN 54-18, FG, LPCB, SBSC, BOSEC, VdS, CPR
Specifications
Specifications
| Specification | SA4700-100APO |
|---|---|
| Warranty | 10 year |
| Colour | White |
| Weight | 239g |
| Product length | 60mm | 2.36in |
| Product width | 150mm | 5.91in |
| Product depth | 90mm | 3.54in |
| Protocol voltage (min) | 5V |
| Protocol voltage (max) | 13V |
| Protocol voltage | 5 to 13V peak to peak |
| Quiescent current | 500μA |
| Quiescent current tested at | 24V dc |
| Supply voltage (max) | 35V dc |
| Supply voltage (min) | 17V dc |
| Supply voltage (Vmin-Vmax) | 17 to 35V dc |
| Humidity | 95% to 0% (no condensation or icing) |
| Humidity Note | no condensation or icing |
| Humidity (max) | 0%, RH |
| Humidity (min) | 95%, RH |
| Operating temperature | -40 to 70°C | -40 to 158°F |
| Operating temperature (max) | 70°C | 158°F |
| Operating temperature (min) | -40°C | -40°F |
| IP rating Value | IP52 |
Specifications as published by Apollo. Please confirm the exact model with us before ordering.
