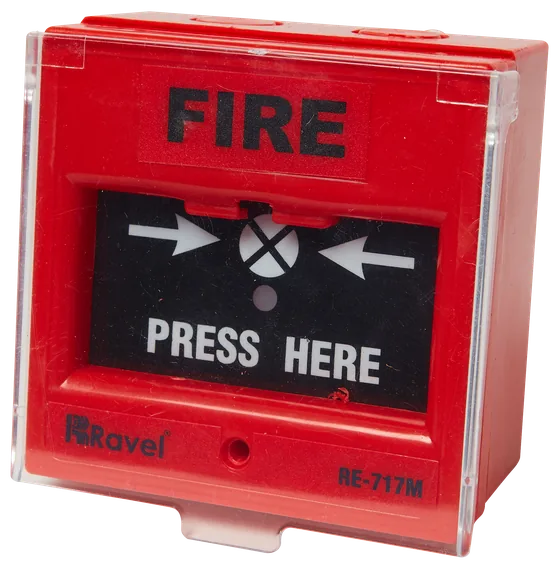

Dealer for RavelRavel Addressable Manual Call Point, Multi Loop System
An analogue addressable call point for Ravel's multi loop system, certified to EN 54-11 Type A for indoor use and resettable with an element kit.
- EN 54-11 approved, Type A, indoor use
- Resettable with an element kit
- Addressed with an 8 way DIP switch
- Flush or surface mounting
- 24 V DC, low standby current of 0.5 mA
- IP53, 0 to 49 °C
Standards and approvals: EN54-11
Specifications
Specifications
| Specification | RE-717M |
|---|---|
| Operating Voltage | 24VDC. |
| Power-up surge current | 0.8mA |
| Quiescent Current | 0.5mA. |
| Alarm Current | 5.8mA |
| Temperature | 0 to 49 °C |
| Relative Humidity | 0 to 93% non-condensing |
| Connection | 2.5mm2 Max. |
| Weight | 125g. |
| IP Rating | IP 53 |
| Dimension | 92mm X 92mm X 48 mm |
Specifications as published by Ravel. Please confirm the exact model with us before ordering.
