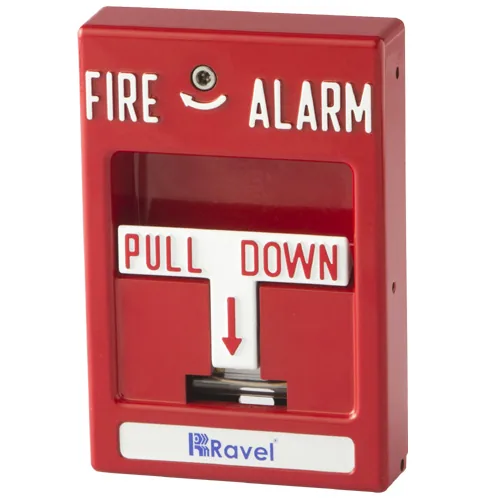

Dealer for RavelRavel Manual Pull Station, Die Cast, Single or Dual Action
A red die cast manual pull station with a lift and pull action and a break glass cover, listed by Ravel for its multi loop and conventional systems. Ravel provides a UL certificate for it.
- Single action (RE716P-1T) or dual action (RE716P-1TLP (R)) versions
- Lift and pull operation with a break glass cover
- Painted die cast housing with corrosion inhibited surfaces
- 10 A, 120 V AC snap action switch and 4 position terminal block
- Hex screw or key lock access, single gang mounting
- Weatherproof and explosion proof versions listed as options
Standards and approvals: UL
Specifications
Specifications
| Specification | RE-716P-1T | RE-716P-1T |
|---|---|---|
| Switch | 10A@120VAC | |
| Station | Width : 3.200 in, Length : 4.750 in, Depth : 0.875 in | |
| Weight | 15.5 oz / 420 grams | |
| Mount | Single gang |
Specifications as published by Ravel. Please confirm the exact model with us before ordering.
