Ravel Addressable Manual Call Point, Multi Loop System
An analogue addressable call point for Ravel's multi loop system, certified to EN 54-11 Type A for indoor use and resettable with an element kit.

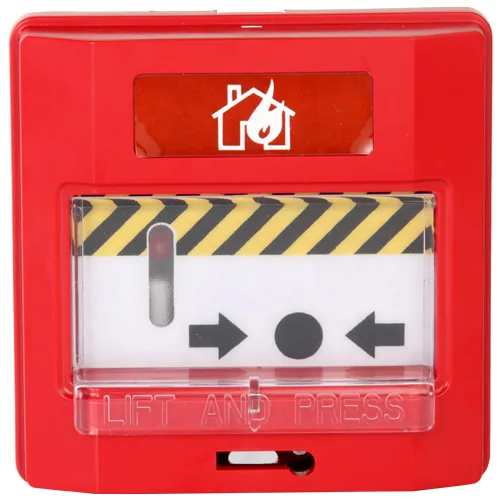

Dealer for RavelRavel Addressable Manual Call Point with Isolator, Single Loop System
An analogue addressable call point for Ravel's single loop system, with a built in isolator and soft addressing from a programming tool.
- Complies with EN 54-11, Type A, indoor use
- Built in isolator
- Soft addressing using a programming tool
- Resettable with an element kit
- Flush or surface mounting
- 24 V DC, IP50, 0 to 49 °C
Standards and approvals: EN54-11
Specifications
Specifications
| Specification | RE-737M |
|---|---|
| Operating Voltage | 24VDC |
| Quiescent Current | 0.5mA |
| Alarm Current | 2.5mA |
| Operating Temperature | 0° to 49°C |
| Relative Humidity | 0 to 93% non-condensing |
| Storage temp | 0°C to 60°C |
| Connection | 2.5mm(2) Max |
| Wight | 125g |
| IP Rating | IP 50 |
| Dimension | 86mm X 86mm X 50mm |
Specifications as published by Ravel. Please confirm the exact model with us before ordering.
