Bosch FCP-O320 Conventional Optical Smoke Detector, 820 or 470 Ohm (FCP-O320-R470)
A conventional optical smoke detector from the FCP-320 series, offered with an 820 ohm alarm resistor (FCP-O320) or a 470 ohm alarm resistor (FCP-O320-R470).

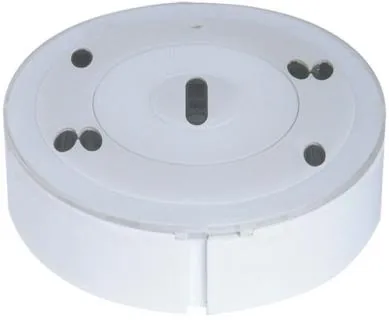

Dealer for BoschBosch FCP-O 500 Conventional Optical Smoke Detector, Ultra-Flat, FCP-500 Series
A conventional optical smoke detector with an ultra-flat design for flush ceiling mounting, colour matched to the room with toning inserts.
- Ultra-flat design for flush ceiling mounting
- Colour toning inserts to match the surrounding decor
- Smooth, easily cleaned detector surface
- Operating voltage 8.5 to 33 volts DC, operating temperature -20 to 65°C, 170 g
- Bosch lists CPR, VdS, CMIM and TMT certificates
Standards and approvals: CMIM, CPR, TMT, VdS
Specifications
Specifications
| Specification | FCP-O 500 |
|---|---|
| Weight (g) | 170 |
| Operating voltage (VDC) | 8.5 to 33 |
| Operating temperature (°C) | -20 to 65 |
| Permissible air speed (m/s) | 20 |
| Operating relative humidity, non-condensing (%) | 0 to 95 |
| Material | Plastic |
| Detection principle | Optical |
Specifications as published by Bosch. Please confirm the exact model with us before ordering.
