Bosch FCP-O320 Conventional Optical Smoke Detector, 820 or 470 Ohm (FCP-O320-R470)
A conventional optical smoke detector from the FCP-320 series, offered with an 820 ohm alarm resistor (FCP-O320) or a 470 ohm alarm resistor (FCP-O320-R470).

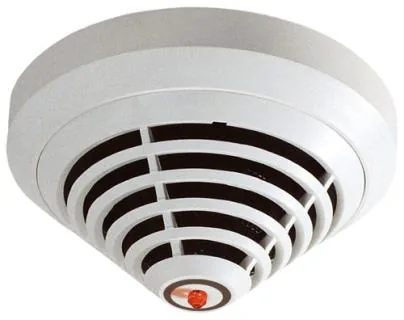

Dealer for BoschBosch FCP-OT320 Conventional Optical/Thermal Multisensor Detector, 820 or 470 Ohm (FCP-OT320-R470)
A conventional multisensor detector that combines an optical smoke sensor with a heat sensor, offered with an 820 ohm or a 470 ohm alarm resistor.
- Optical and thermal sensors with evaluation electronics
- Drift compensation adjusts the threshold if the optical sensor gets dirty
- Dust-repellent labyrinth and cap
- Removal lock that can be switched on or off; remote alarm indicator can be connected
- Operating voltage 8.5 to 30 V DC, operating temperature -20 to 50°C
- Bosch lists CPR, VdS and CMIM certificates
Standards and approvals: CMIM, CPR, VdS
Specifications
Specifications
| Specification | FCP-OT320 | FCP-OT320-R470 |
|---|---|---|
| Weight (g) | 76 | 75 |
| Operating voltage (VDC) | 8.5 to 30 | 8.5 to 30 |
| Current consumption (mA) | 0.12 | 0.12 |
| Operating temperature (°C) | -20 to 50 | -20 to 50 |
| Permissible air speed (m/s) | 20 | 20 |
| Operating relative humidity, non-condensing (%) | 0 to 95 | 0 to 95 |
| Color | White | White |
| Material | Plastic | Plastic |
| Detection principle | Optical; Thermal | Optical; Thermal |
Specifications as published by Bosch. Please confirm the exact model with us before ordering.
