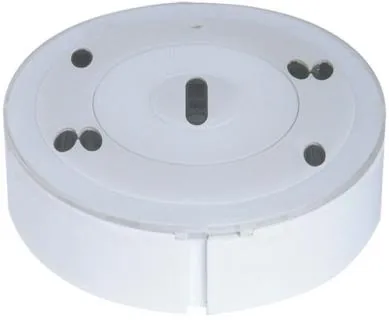

Dealer for BoschBosch FCP-OC 500 Conventional Optical/Chemical Multisensor Detector, Ultra-Flat, FCP-500 Series
A conventional multisensor detector with an optical sensor and an additional gas sensor, in the ultra-flat FCP-500 design for flush ceiling mounting.
- Optical smoke sensor plus a chemical (gas) sensor
- Ultra-flat design with colour toning inserts
- Smooth, easily cleaned detector surface
- Operating voltage 8.5 to 33 volts DC, operating temperature -10 to 50°C, 180 g
- Diameter x height in cm: 11.30 x 5.50
- Bosch lists CPR, VdS, CMIM and TMT certificates
Standards and approvals: CMIM, CPR, TMT, VdS
Specifications
Specifications
| Specification | FCP-OC 500 |
|---|---|
| Weight (g) | 180 |
| Operating voltage (VDC) | 8.5 to 33 |
| Operating temperature (°C) | -10 to 50 |
| Permissible air speed (m/s) | 20 |
| Operating relative humidity, non-condensing (%) | 0 to 95 |
| Dimensions (Ø x H) (cm) | 11.30 x 5.50 |
| Material | Plastic |
| Detection principle | Chemical; Optical |
Specifications as published by Bosch. Please confirm the exact model with us before ordering.
