Morley by Honeywell HM/PSE/S2 Photoelectric Smoke Detector (DXc and ZXSe)
An S200A plug-in photoelectric smoke detector listed with the DXc and ZXSe panels. Its detection chamber is designed to cut false alarms from dust, insects and other debris.

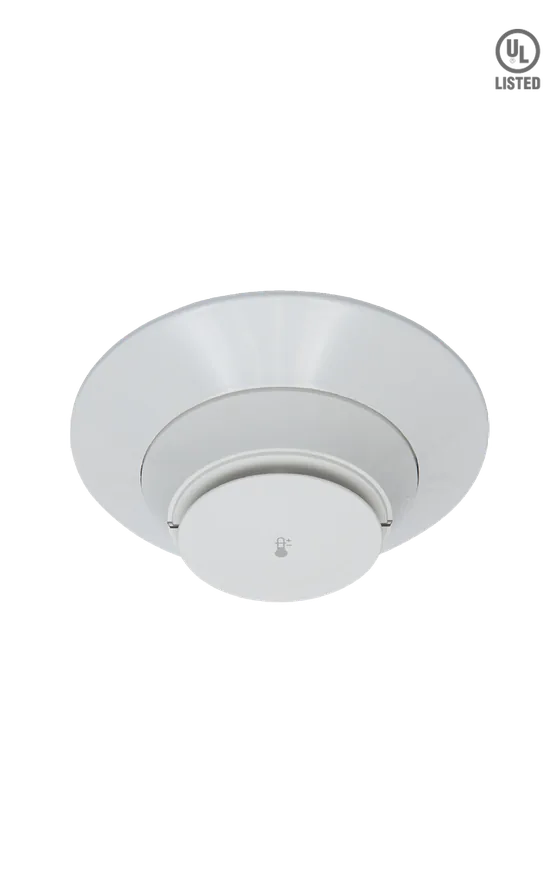

Dealer for Morley by HoneywellMorley by Honeywell HM/FHSE/UL/W Fixed Temperature Heat Detector (Morley UL)
An addressable fixed temperature heat detector for the Morley UL range, UL listed with the B300-6-IV base and approved for 50 ft (15.24 m) spacing.
- Fixed temperature heat detection
- UL approved for 50 ft (15.24 m) centre-to-centre spacing
- 15 to 32 volts DC; standby current 200μA at 24 VDC
- Operating temperature -20°C to 38°C
- UL Listing S36217
Standards and approvals: UL Listing: S36217
Download the official Morley by Honeywell catalogue (PDF, 2.3 MB)
Specifications
Specifications
| Specification | HM/FHSE/UL/W |
|---|---|
| Shipping weight | 3.4 oz. (95 g) |
| Operating temperature range | HM-FHSE-UL-W, HM-RHSE-UL-W:, 4°F to 100°F (-20°C to 38°C) |
| Detector spacing | UL approved for 50 ft. (15.24 m) center-to-center |
| Relative humidity | 10% to 93% non-condensing |
| Voltage range | 15 - 32 volts DC peak |
| Standby current (max. avg.) | 200μA @ 24 VDC (one communication every 5 seconds with LED enabled) |
| Max current | 4.5 mA @ 24 VDC (“ON”) |
Specifications as published by Morley by Honeywell. Please confirm the exact model with us before ordering.
More Morley by Honeywell Addressable Detectors
Morley by Honeywell HM/PTSE Photo-Thermal Multi-Criteria Detector (DXc and ZXSe)
An S200A multi-criteria detector that adds 58°C fixed temperature and rate of rise thermal sensing to a photoelectric smoke sensor, for better false alarm immunity and faster response to a wide range of fires.
Morley by Honeywell HM/RHSE Rate of Rise Heat Detector, Class A1R (DXc and ZXSe)
A plug-in addressable heat detector with a single thermistor sensing circuit, giving fixed 58°C and rate of rise (10°C per minute) detection to EN 54-5 Class A1R.
Morley by Honeywell HM/FHSE Fixed Temperature Heat Detector, 58°C, Class A1S (DXc and ZXSe)
A plug-in addressable heat detector with a single thermistor sensing circuit that alarms at a fixed 58°C, to EN 54-5 Class A1S.
Morley by Honeywell MI-HTSE-S2I-IV Addressable Thermal Sensor (DXc and ZXSe)
A Morley-IAS thermal sensor listed with the DXc and ZXSe panels. The datasheet linked on the maker's page is for other model numbers, so FPS confirms the details of this part before supply.
Morley by Honeywell MI-PTIR-S2-IV Photo Thermal Infra Red (PTIR) Multi-Criteria Detector (DXc and ZXSe)
A multi-criteria, multi-sensor detector that combines photoelectric smoke, thermal and infra red sensing, listed with the DXc and ZXSe panels. The maker presents PTIR as an alternative to ionisation detectors with better false alarm immunity.
