Morley by Honeywell HM/PSE/S2 Photoelectric Smoke Detector (DXc and ZXSe)
An S200A plug-in photoelectric smoke detector listed with the DXc and ZXSe panels. Its detection chamber is designed to cut false alarms from dust, insects and other debris.

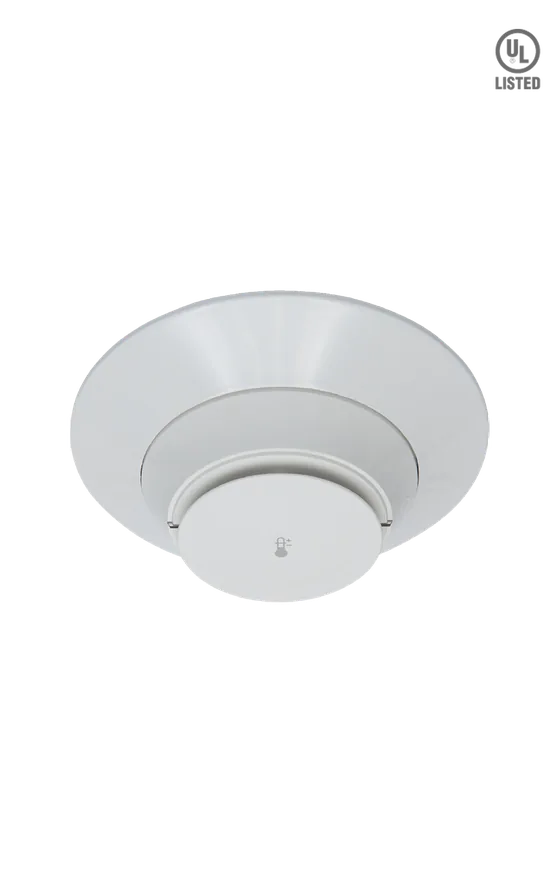

Dealer for Morley by HoneywellMorley by Honeywell HM/HTSE/UL/W High Temperature Heat Detector (Morley UL)
An addressable high heat detector for the Morley UL range, UL listed with the B300-6-IV base, with an operating temperature range of -20°C to 66°C.
- High heat detection
- Operating temperature -20°C to 66°C
- UL approved for 50 ft (15.24 m) centre-to-centre spacing
- 15 to 32 volts DC; standby current 200μA at 24 VDC
- UL Listing S36217
Standards and approvals: UL Listing: S36217
Download the official Morley by Honeywell catalogue (PDF, 2.3 MB)
Specifications
Specifications
| Specification | HM/HTSE/UL/W |
|---|---|
| Shipping weight | 3.4 oz. (95 g) |
| Operating temperature range | HM-HTSE-UL-W:, 4°F to 150°F (-20°C to 66°C) |
| Detector spacing | UL approved for 50 ft. (15.24 m) center-to-center |
| Relative humidity | 10% to 93% non-condensing |
| Voltage range | 15 - 32 volts DC peak |
| Standby current (max. avg.) | 200μA @ 24 VDC (one communication every 5 seconds with LED enabled) |
| Max current | 4.5 mA @ 24 VDC (“ON”) |
Specifications as published by Morley by Honeywell. Please confirm the exact model with us before ordering.
More Morley by Honeywell Addressable Detectors
Morley by Honeywell HM/PTSE Photo-Thermal Multi-Criteria Detector (DXc and ZXSe)
An S200A multi-criteria detector that adds 58°C fixed temperature and rate of rise thermal sensing to a photoelectric smoke sensor, for better false alarm immunity and faster response to a wide range of fires.
Morley by Honeywell HM/RHSE Rate of Rise Heat Detector, Class A1R (DXc and ZXSe)
A plug-in addressable heat detector with a single thermistor sensing circuit, giving fixed 58°C and rate of rise (10°C per minute) detection to EN 54-5 Class A1R.
Morley by Honeywell HM/FHSE Fixed Temperature Heat Detector, 58°C, Class A1S (DXc and ZXSe)
A plug-in addressable heat detector with a single thermistor sensing circuit that alarms at a fixed 58°C, to EN 54-5 Class A1S.
Morley by Honeywell MI-HTSE-S2I-IV Addressable Thermal Sensor (DXc and ZXSe)
A Morley-IAS thermal sensor listed with the DXc and ZXSe panels. The datasheet linked on the maker's page is for other model numbers, so FPS confirms the details of this part before supply.
Morley by Honeywell MI-PTIR-S2-IV Photo Thermal Infra Red (PTIR) Multi-Criteria Detector (DXc and ZXSe)
A multi-criteria, multi-sensor detector that combines photoelectric smoke, thermal and infra red sensing, listed with the DXc and ZXSe panels. The maker presents PTIR as an alternative to ionisation detectors with better false alarm immunity.
Smoke and Heat Detectors from other brands
Honeywell
Honeywell FDC-101 Wi-Fi Smoke Detector (IMPACT by Honeywell)
A battery operated, Wi-Fi enabled photoelectric smoke detector from the IMPACT by Honeywell range. When smoke reaches its alarm threshold it sounds a buzzer, flashes an LED and sends real-time alerts to a smartphone through the IMPACT by Honeywell app.
Honeywell
Honeywell SSD-100 Standalone Smoke Detector (IMPACT by Honeywell)
A battery operated standalone smoke alarm with photoelectric sensing that sounds an alarm and lights a red LED when smoke reaches its threshold. It runs on two AA batteries and also warns of a low battery or a chamber fault.
Notifier
Notifier FSP-951 Intelligent Photoelectric Smoke Detector
An intelligent addressable photoelectric smoke detector with an optical chamber that senses smoke from a wide range of fires, and sensitivity that is programmable and monitored by the panel.
Notifier
Notifier FSP-951T Photoelectric Smoke Detector with Thermal Sensing
An intelligent photoelectric smoke detector with dual thermistors that add 135°F (57°C) fixed temperature heat sensing in the same head.
System Sensor
System Sensor 22051E / 22051EI Addressable Photoelectric Smoke Detector (Series 200 Advanced)
A white addressable photoelectric smoke detector working on the light scattering principle, with smoothing filters and embedded software to resist unwanted alarms. The 22051EI version has a built-in isolator.
System Sensor
System Sensor 22051TE / 22051TEI Addressable Photo-Thermal Detector (Series 200 Advanced)
A two sensor detector that adds thermal sensing to the photoelectric smoke chamber for better false alarm immunity and a faster response to a wide range of fires. The 22051TEI version has a built-in isolator.
