Morley by Honeywell HM/PSE/S2 Photoelectric Smoke Detector (DXc and ZXSe)
An S200A plug-in photoelectric smoke detector listed with the DXc and ZXSe panels. Its detection chamber is designed to cut false alarms from dust, insects and other debris.

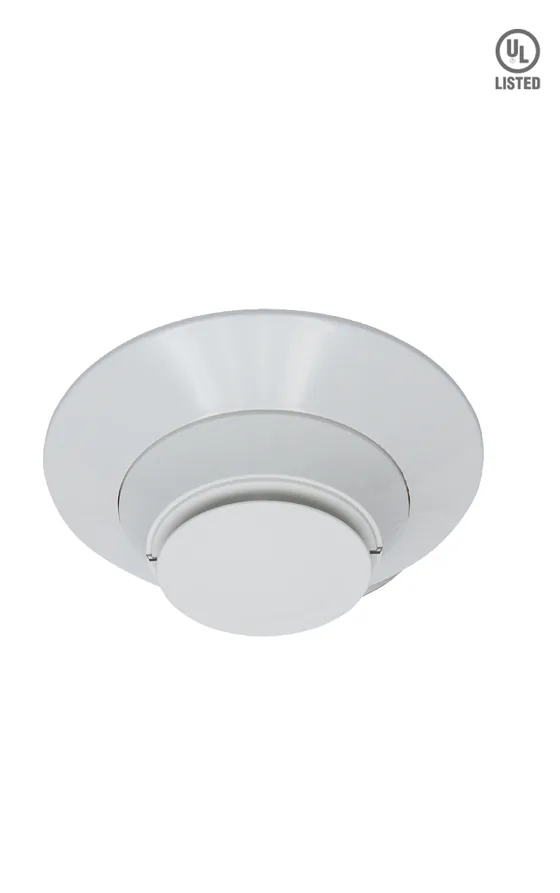

Dealer for Morley by HoneywellMorley by Honeywell HM/PSE/UL/W Photoelectric Smoke Detector (Morley UL)
An addressable photoelectric smoke detector for the Morley UL range, UL listed (7th edition) with the B300-6-IV base.
- UL sensitivity range 0.5% to 4.0% per foot obscuration
- UL listed air velocity range 0 to 4000 ft/min, suitable for installation in ducts
- 15 to 32 volts DC; standby current 200μA at 24 VDC
- Operating temperature 0°C to 50°C, 10% to 93% relative humidity
- Used with the B300-6-IV base
- UL Listing S36216
Standards and approvals: UL Listing: S36216
Download the official Morley by Honeywell catalogue (PDF, 2.3 MB)
Specifications
Specifications
| Specification | HM/PSE/UL/W |
|---|---|
| Sensitivity | UL Applications: 0.5% to 4.0% per foot obscuration. |
| Shipping weight | 3.4 oz. (95 g) |
| Operating temperature range | HM-PSE-UL-W: 32°F to 122°F (0°C to 50°C) |
| UL Listed Velocity Range | 0-4000 ft/min. (1219.2 m/min.), suitable for installation in ducts |
| Relative humidity | 10% to 93% non-condensing |
| Voltage range | 15 - 32 volts DC peak |
| Standby current (max. avg.) | 200μA @ 24 VDC (one communication every 5 seconds with LED enabled) |
| Max current | 4.5 mA @ 24 VDC (“ON”) |
Specifications as published by Morley by Honeywell. Please confirm the exact model with us before ordering.
