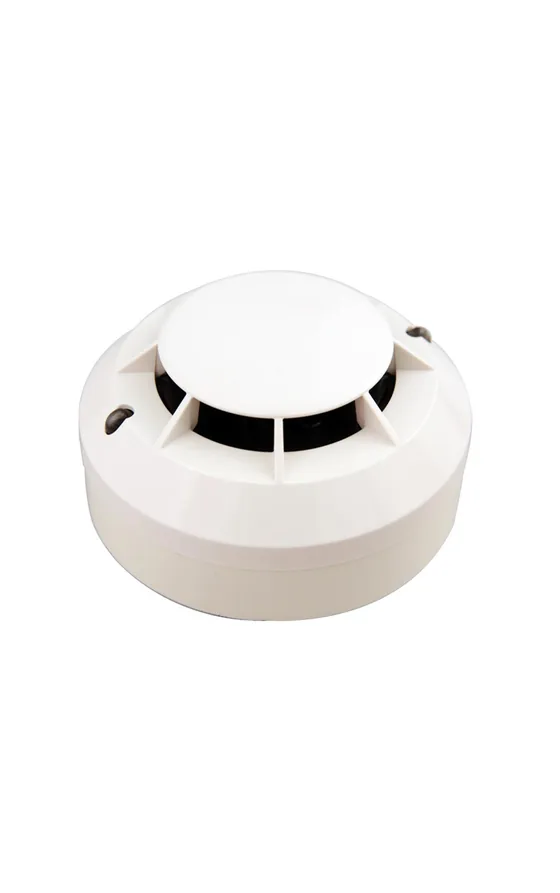

Dealer for Morley by HoneywellMorley by Honeywell HM-PTSE-AP / HM-PTSE-I-AP Photo-Thermal Multi-Criteria Detector (Morley Max)
A photo-thermal detector for Morley Max panels on the HM Advanced Protocol platform, in a standard version or with a built-in isolator.
- Smoke and heat sensing, listed to EN 54-7 and EN 54-5
- HM Advanced Protocol platform
- Standard version (HM-PTSE-AP), 15 to 32V DC
- Isolator version (HM-PTSE-I-AP), 15 to 28V DC, isolation current 15mA
- 61 mm high and 102 mm diameter in a B501AP base, 99g including base
- White PC/ABS body
Standards and approvals: EN54-7, EN54-5
Download the official Morley by Honeywell catalogue (PDF, 2.3 MB)
Specifications
Specifications
| Specification | HM-PTSE-AP | HM-PTSE-I-AP |
|---|---|---|
| HEIGHT | 61mm installed in B501AP base | 61mm installed in B501AP base |
| DIAMETER | 102mm installed in B501AP base | 102mm installed in B501AP base |
| WEIGHT | 99g (inc base) | 99g (inc base) |
| MAX WIRE GAUGE FOR TERMINALS | 2.5mm2 | 2.5mm2 |
| COLOUR | White | White |
| MATERIAL | PC / ABS | PC / ABS |
| OPERATING VOLTAGE RANGE | 15 to 32Vdc | 15 to 28Vdc |
| MAXIMUM STANDBY CURRENT | 260µA at 24Vdc (no communications) 310µA at 24Vdc ( LED blink enabled, once every 5s) | 200µA at 24Vdc (no communications) 300µA at 24Vdc ( LED blink enabled, once every 5s) |
| LED CURRENT | 3.5mA at 24Vdc | |
| REMOTE OUTPUT VOLTAGE | 22.5Vdc @ 24Vdc | |
| REMOTE OUTPUT CURRENT | 10.8mA @ 24Vdc | |
| ADDITIONAL LOOP RESISTANCE USING THE B501AP | typ 20mohm (max 30 mohm) | |
| ISOLATION CURRENT | 15mA at 24Vdc | |
| MAXIMUM CONTINUOUS CURRENT | 1A (Switch Closed) | |
| ADDITIONAL LOOP RESISTANCE | typ 80 mohm @24V (max 170mohm @ 15V) |
Specifications as published by Morley by Honeywell. Please confirm the exact model with us before ordering.
