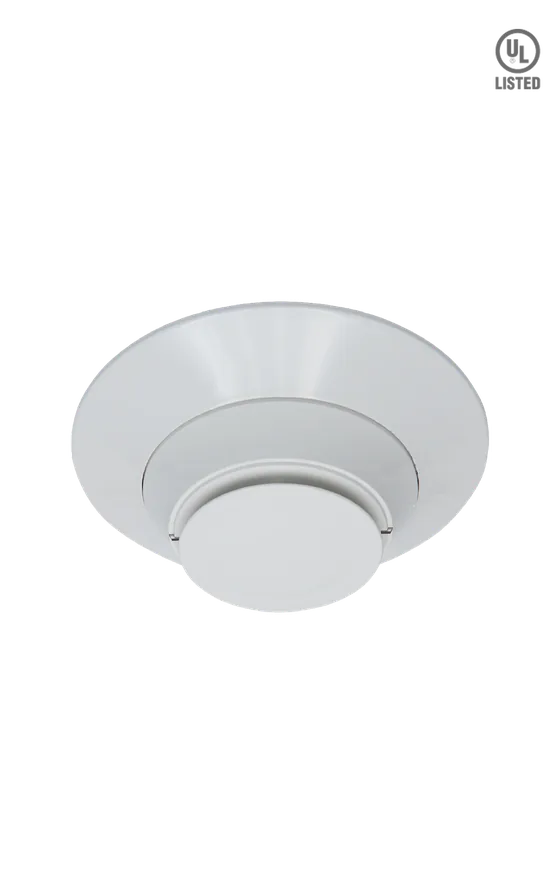

Dealer for Morley by HoneywellMorley by Honeywell HM/PTSE/UL/W Multi-Sensor Smoke and Heat Detector (Morley UL)
An addressable multi-sensor detector for the Morley UL range that combines photoelectric smoke sensing with fixed temperature, rate of rise and high temperature heat ratings.
- Smoke sensitivity 0.5% to 4.0% per foot obscuration
- Fixed temperature set point 135°F (57°C), rate of rise 15°F (8.3°C) per minute, high temperature heat 190°F (88°C)
- UL listed air velocity range 0 to 4000 ft/min, suitable for ducts
- 15 to 32 volts DC; standby current 200μA at 24 VDC
- Operating temperature 0°C to 38°C
- UL Listing S36216, with the B300-6-IV base
Standards and approvals: UL Listing: S36216
Download the official Morley by Honeywell catalogue (PDF, 2.3 MB)
Specifications
Specifications
| Specification | HM/PTSE/UL/W |
|---|---|
| Sensitivity | UL Applications: 0.5% to 4.0% per foot obscuration. |
| Shipping weight | 3.4 oz. (95 g) |
| Operating temperature range | HM-PTSE-UL-W: 32°F to 100°F(0°C to 38°C) |
| UL Listed Velocity Range | 0-4000 ft/min. (1219.2 m/min.), suitable for installation in ducts |
| Relative humidity | 10% to 93% non-condensing |
| Thermal ratings | fixed-temperature set point 135°F (57°C), rate-ofrise, detection 15°F (8.3°C) per minute, high temperature heat 190°F (88°C) |
| Voltage range | 15 - 32 volts DC peak |
| Standby current (max. avg.) | 200μA @ 24 VDC (one communication every 5 seconds with LED enabled) |
| Max current | 4.5 mA @ 24 VDC (“ON”) |
Specifications as published by Morley by Honeywell. Please confirm the exact model with us before ordering.
