Morley by Honeywell HM/PSE/S2 Photoelectric Smoke Detector (DXc and ZXSe)
An S200A plug-in photoelectric smoke detector listed with the DXc and ZXSe panels. Its detection chamber is designed to cut false alarms from dust, insects and other debris.

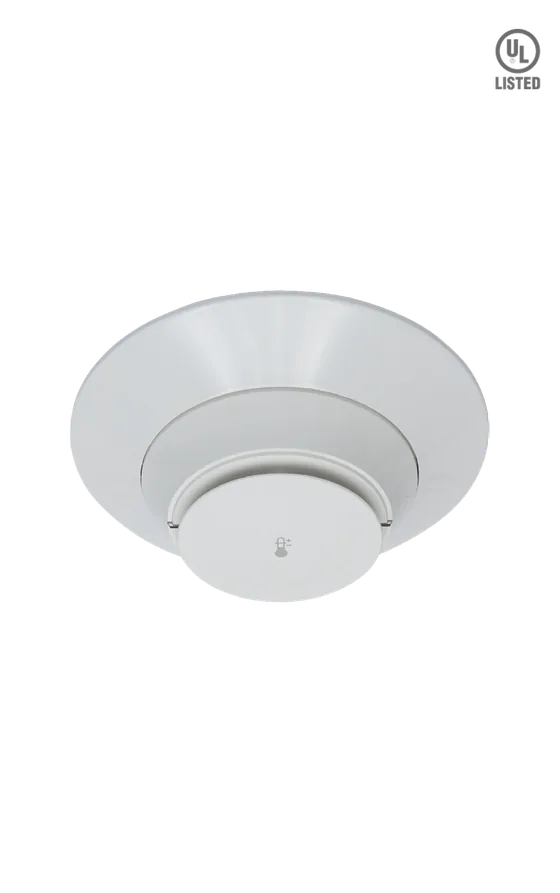

Dealer for Morley by HoneywellMorley by Honeywell HM/RHSE/UL/W Rate of Rise Heat Detector (Morley UL)
An addressable heat detector with rate of rise sensing for the Morley UL range, UL listed with the B300-6-IV base.
- Fixed temperature set point 135°F (57°C) and rate of rise detection 15°F (8.3°C) per minute
- High temperature heat rating 190°F (88°C)
- UL approved for 50 ft (15.24 m) centre-to-centre spacing
- 15 to 32 volts DC
- Operating temperature -20°C to 38°C
- UL Listing S36217
Standards and approvals: UL Listing: S36217
Download the official Morley by Honeywell catalogue (PDF, 2.3 MB)
Specifications
Specifications
| Specification | HM/RHSE/UL/W |
|---|---|
| Shipping weight | 3.4 oz. (95 g) |
| Operating temperature range | HM-FHSE-UL-W, HM-RHSE-UL-W:, 4°F to 100°F (-20°C to 38°C) |
| Detector spacing | UL approved for 50 ft. (15.24 m) center-to-center |
| Relative humidity | 10% to 93% non-condensing |
| Thermal ratings | fixed-temperature set point 135°F (57°C), rate-of rise detection 15°F (8.3°C) per minute, high temperature heat 190°F (88°C) |
| Voltage range | 15 - 32 volts DC peak |
| Standby current (max. avg.) | 200μA @ 24 VDC (one communication every 5 seconds with LED enabled) |
| Max current | 4.5 mA @ 24 VDC (“ON”) |
Specifications as published by Morley by Honeywell. Please confirm the exact model with us before ordering.
