Morley by Honeywell HM/PSE/S2 Photoelectric Smoke Detector (DXc and ZXSe)
An S200A plug-in photoelectric smoke detector listed with the DXc and ZXSe panels. Its detection chamber is designed to cut false alarms from dust, insects and other debris.

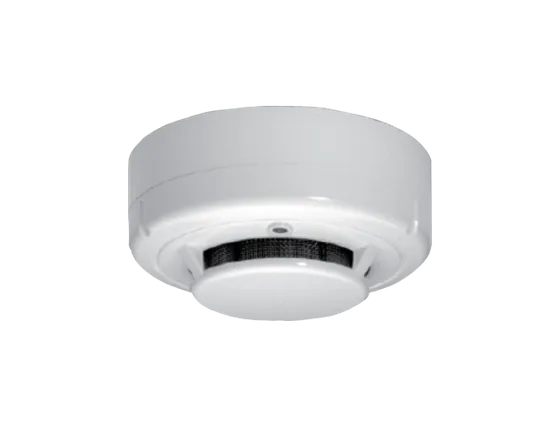

Dealer for Morley by HoneywellMorley by Honeywell HML/PSE Photoelectric Smoke Detector (Morley Lite)
The Morley Lite photoelectric smoke detector, with an ASIC and optical chamber for accurate detection and a high level of resilience to non-fire influences. It fits Series 100 detector bases, so existing Series 100 installations can be upgraded or extended.
- ASIC electronics with an optical chamber
- Backward compatible with Series 100 detector bases
- 8 to 30V DC (nominal 12/24V DC)
- Maximum alarm current 80mA at 24V DC, limited by the panel
- -30°C to +70°C, 5 to 95% relative humidity
- Warm grey Bayblend FR110 body, 105g plus 60g for the B401 base
Download the official Morley by Honeywell catalogue (PDF, 2.3 MB)
Specifications
Specifications
| Specification | HML/PSE |
|---|---|
| Operating Voltage Range | 8 to 30VDC (Nominal 12/24VDC) |
| Maximum Alarm Current (LED On) | 80mA @ 24VDC (Limited by panel) |
| Application Temperature Range | -30⁰C to +70⁰C |
| Humidity | 5 to 95% Relative Humidity (non condensing) |
| Height | 38mm (plus 9mm for B401 base) |
| Diameter | 102mm |
| Weight | 105g (plus 60g for B401 base) |
| Max Wire Gauge for Terminals | 0.75mm2 to 2.5mm2 |
| Colour | Pantone Warm Grey 1C |
| Material | Bayblend FR110 |
Specifications as published by Morley by Honeywell. Please confirm the exact model with us before ordering.
More Morley by Honeywell Addressable Detectors
Morley by Honeywell HM/PTSE Photo-Thermal Multi-Criteria Detector (DXc and ZXSe)
An S200A multi-criteria detector that adds 58°C fixed temperature and rate of rise thermal sensing to a photoelectric smoke sensor, for better false alarm immunity and faster response to a wide range of fires.
Morley by Honeywell HM/RHSE Rate of Rise Heat Detector, Class A1R (DXc and ZXSe)
A plug-in addressable heat detector with a single thermistor sensing circuit, giving fixed 58°C and rate of rise (10°C per minute) detection to EN 54-5 Class A1R.
Morley by Honeywell HM/FHSE Fixed Temperature Heat Detector, 58°C, Class A1S (DXc and ZXSe)
A plug-in addressable heat detector with a single thermistor sensing circuit that alarms at a fixed 58°C, to EN 54-5 Class A1S.
Morley by Honeywell MI-HTSE-S2I-IV Addressable Thermal Sensor (DXc and ZXSe)
A Morley-IAS thermal sensor listed with the DXc and ZXSe panels. The datasheet linked on the maker's page is for other model numbers, so FPS confirms the details of this part before supply.
Morley by Honeywell MI-PTIR-S2-IV Photo Thermal Infra Red (PTIR) Multi-Criteria Detector (DXc and ZXSe)
A multi-criteria, multi-sensor detector that combines photoelectric smoke, thermal and infra red sensing, listed with the DXc and ZXSe panels. The maker presents PTIR as an alternative to ionisation detectors with better false alarm immunity.
