Morley by Honeywell HM/PSE/S2 Photoelectric Smoke Detector (DXc and ZXSe)
An S200A plug-in photoelectric smoke detector listed with the DXc and ZXSe panels. Its detection chamber is designed to cut false alarms from dust, insects and other debris.

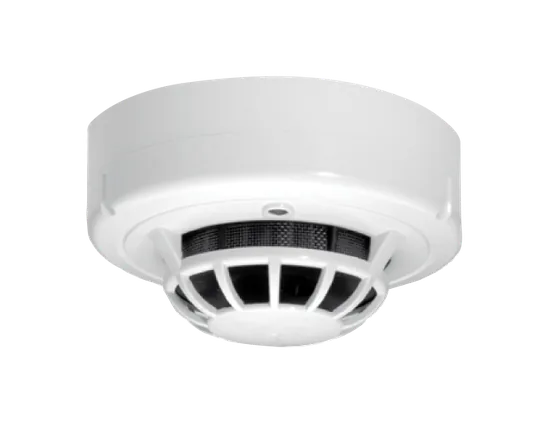

Dealer for Morley by HoneywellMorley by Honeywell HML/PTSE Photoelectric Smoke and Heat Detector (Morley Lite)
A Morley Lite smoke and heat detector that combines an optical chamber with a thermal element and signals an alarm only once its processor is satisfied that a fire is developing, which reduces nuisance alarms.
- Optical chamber plus thermal element
- On-board processor with algorithms developed for the unit
- Fewer nuisance alarms and faster response to a real fire
- 8 to 30V DC (nominal 12/24V DC), 80mA maximum alarm current
- Bayblend FR110 body, 105g plus 60g for the B401 base
Download the official Morley by Honeywell catalogue (PDF, 2.3 MB)
Specifications
Specifications
| Specification | HML/PTSE |
|---|---|
| Operating Voltage Range | 8 to 30VDC (Nominal 12/24VDC) |
| Maximum Alarm Current (LED On) | 80mA @ 24VDC (Limited by panel) |
| Height | 38mm (plus 9mm for B401 base) |
| Diameter | 102mm |
| Weight | 105g (plus 60g for B401 base) |
| Max Wire Gauge for Terminals | 0.75mm2 to 2.5mm2 |
| Material | Bayblend FR110 |
Specifications as published by Morley by Honeywell. Please confirm the exact model with us before ordering.
