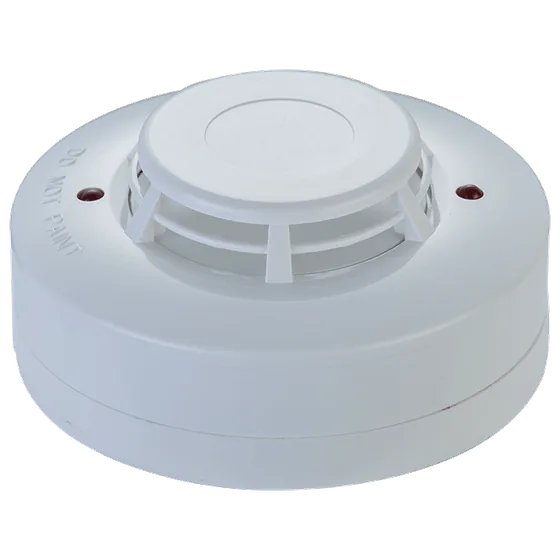

Dealer for RavelRavel Addressable Heat Detector (Multi Loop)
An analogue addressable heat detector for Ravel's multi loop system, alarming at a fixed 59 °C or on a fast temperature rise.
- Fixed temperature alarm at 59 °C
- Rate of rise alarm at 11.1 °C per minute
- Addresses 1 to 254 set with an 8 way DIP switch
- Polarity insensitive, dual LEDs visible through 360°
- 17 to 28 V DC, IP42
- Ravel states UL listing
Standards and approvals: UL
Specifications
Specifications
| Specification | Details | Details | Details |
|---|---|---|---|
| Operating Voltage | 17 ~ 28V DC | ||
| Reset Voltage | less than 3V | ||
| Start-Up Current | 500 µA. | ||
| Alarm Current | 7 mA. | ||
| Remote Output | 2mA maximum open collector | ||
| Fixed Temperature | 59 °C (138 °F) | ||
| Rate of Raise of Temp | 11.1°C / min (20°F/min) | ||
| Operating Temperature | -10 °C to 50 °C | ||
| Humidity | 0 to 95% RH, non-condensing | ||
| Height | 46 mm with base | ||
| Diameter | 100 mm dia | ||
| Weight | 150g with base | ||
| IP Rating | IP: 42 |
Specifications as published by Ravel. Please confirm the exact model with us before ordering.
