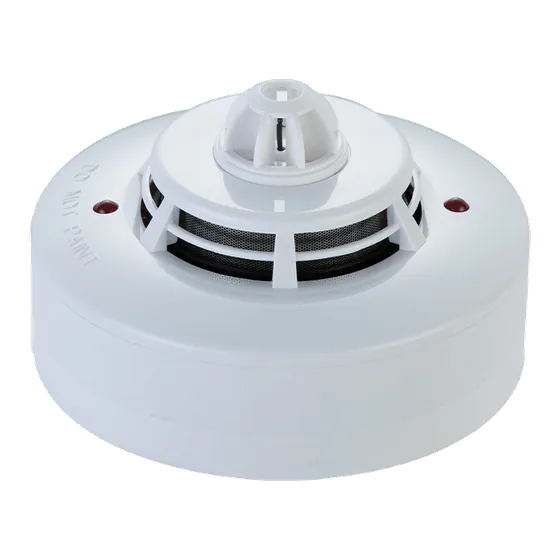

Dealer for RavelRavel Addressable Multi Sensor Detector, Smoke and Heat (Multi Loop)
An analogue addressable detector for Ravel's multi loop system that combines photoelectric smoke sensing with a heat sensor.
- Photoelectric smoke and heat sensing in one head
- Heat alarm at a fixed 59 °C or a rise of 11.1 °C per minute
- Addresses 1 to 254 set with an 8 way DIP switch
- Polarity insensitive, dual LEDs visible through 360°
- 17 to 28 V DC, -10 °C to 50 °C, IP42
- Ravel states UL listing
Standards and approvals: UL
Specifications
Specifications
| Specification | RE317D-SHL |
|---|---|
| Operating Voltage | 17 ~ 28V DC |
| Reset Voltage | less than 3V |
| Standby Current | 500 µA |
| Alarm Current | 7 mA. |
| Remote Output | 2mA maximum open collector |
| Thermal Rating | 59 °C (138 °F) |
| Rate of Raise of Temp | 11.1°C / min (20°F/min) |
| Smoke Sensitivity | (2.12 ± 0.61) % / ft |
| High | 1.1% ft |
| Middle | 1.4% ft |
| Low | 2.3% ft |
| Air Velocity | 0 to 4000 fpm. |
| Operating Temperature | -10 °C to 50 °C |
| Humidity | 0 to 95% RH, non-condensing |
| Height | 46 mm with base |
| Diameter | 100 mm dia |
| Weight | 150g with base |
| IP Rating | IP: 42 |
Specifications as published by Ravel. Please confirm the exact model with us before ordering.
