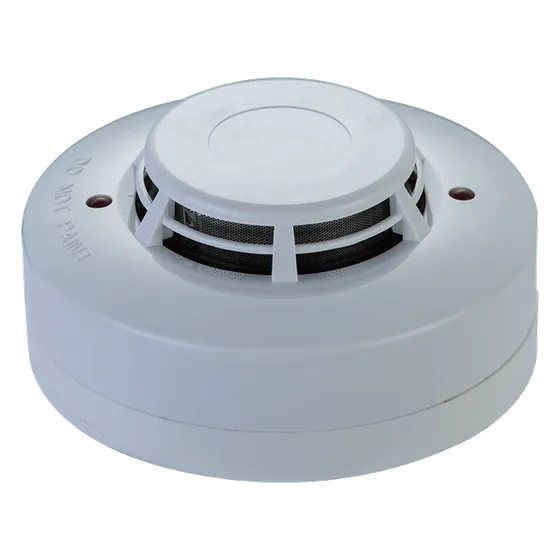

Dealer for RavelRavel Addressable Photoelectric Smoke Detector (Multi Loop)
An analogue addressable photoelectric smoke detector for Ravel's multi loop system, with an insect filter chamber and DIP switch addressing.
- Photoelectric smoke sensing with high, middle and low sensitivity values listed
- Addresses 1 to 254 set with an 8 way DIP switch
- Insect filter chamber
- Polarity insensitive, dual LEDs visible through 360°
- 17 to 28 V DC, -10 °C to 50 °C, IP42
- Ravel states UL listing
Standards and approvals: UL
Specifications
Specifications
| Specification | RE-317D-SL |
|---|---|
| Operating Voltage | 17- 28V DC |
| Reset Voltage | less than 3V |
| Standby Current | 500 µA |
| Alarm Current | 7mA. |
| Remote Output | 2mA maximum open collector |
| Operating Temperature | -10 °C to 50 °C |
| Humidity | 0-95% RH, non-condensing |
| Smoke Sensitivity | (2.12 ± 0.61)% I ft. |
| High | 1.1%ft |
| Middle | 1.4%ft. |
| Low | 2.3%ft. |
| Air Velocity | 0-4000 fpm. |
| Height | 46 mm with base |
| Diameter | 100mm dia |
| Weight | 150g with base |
| IP Rating | IP-42 |
Specifications as published by Ravel. Please confirm the exact model with us before ordering.
