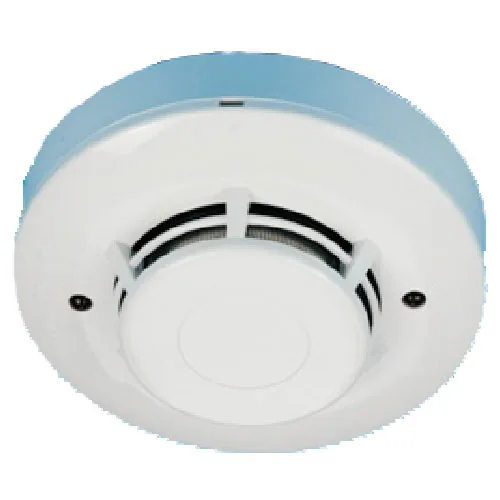

Dealer for RavelRavel Addressable Photoelectric Smoke Detector (Single Loop)
An analogue addressable photoelectric smoke detector for the Ravel MonitI single loop panel, soft addressed by programming.
- Photoelectric smoke sensing, 0.09 to 0.14 dB/m
- Soft address programming
- Stable smoke chamber that needs no adjustment or replacement
- Polarity insensitive, dual LEDs visible through 360°
- 17 to 28 V DC, -10 °C to 50 °C, IP42
- Ravel states compliance with EN 54
Standards and approvals: EN 54
Specifications
Specifications
| Specification | RE-337S |
|---|---|
| Operating Voltage | 17 ~ 28V DC |
| Reset Voltage | less than 5V |
| Start-Up Current | 800 µA. |
| Start-Up Time | less than 30s |
| Alarm Current | 7 mA. |
| Reset Time | less than 30s. |
| Sampling Time | less than 1s. |
| Remote Output | 2mA maximum open collector |
| Operating Temperature | -10 °C to 50 °C |
| Humidity | 0 to 95% RH, non-condensing |
| Smoke Sensitivity | 0.09 dB/m ~ 0.14 dB/m. |
| Height | 46 mm with base |
| Diameter | 100 mm dia |
| Weight | 150g with base |
| IP Rating | IP: 42 |
Specifications as published by Ravel. Please confirm the exact model with us before ordering.
