System Sensor ECO1003A Conventional Photoelectric Smoke Detector (ECO1000)
A low profile conventional photoelectric smoke detector with an optical chamber and an ASIC for quick, accurate detection, designed to extend the interval between cleanings.
Dealer for System Sensor

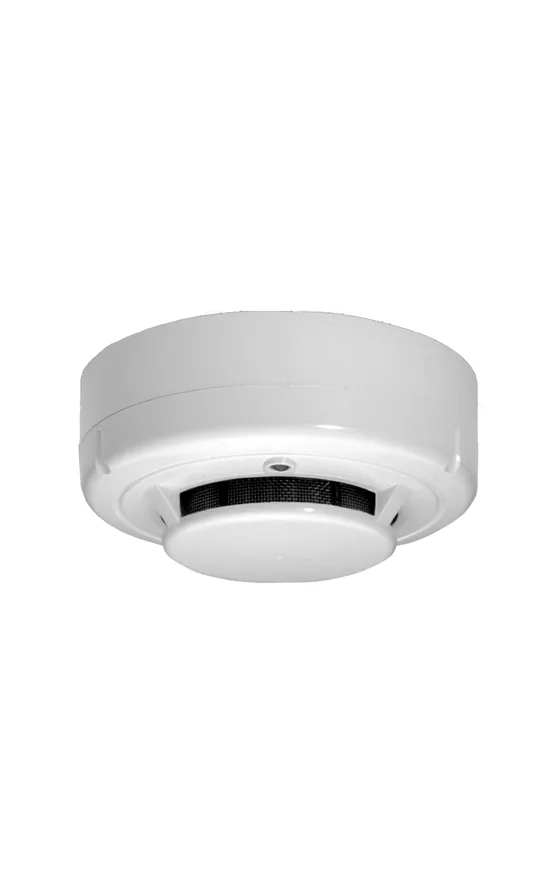

System Sensor 2351/EC Conventional Photoelectric Smoke Detector (Series 300)
A low profile Series 300 photoelectric smoke detector with a bi-colour LED, backward compatible with Series 100 detector bases for upgrading existing installations.
- Optical chamber with high resilience to non-fire influences
- Backward compatible with Series 100 detector bases
- Bi-colour LED indicator, automatic drift compensation
- Low current draw, 8 to 30VDC
Specifications
Specifications
| Specification | 2351/EC |
|---|---|
| Operating Voltage Range | 8 to 30VDC (Nominal 12/24VDC) |
| Maximum Alarm Current (LED On) | 80mA @ 24VDC (Limited by panel) |
| Humidity | 5 to 95% Relative Humidity (non condensing) |
| Height | 38mm (plus 9mm for B401 base) |
| Diameter | 102mm |
| Weight | 105g (plus 60g for B401 base) |
| Max Wire Gauge for Terminals | 0.75mm2 to 2.5mm2 |
| Colour | Pantone Warm Grey 1C |
| Material | Bayblend FR110 |
Specifications as published by System Sensor. Please confirm the exact model with us before ordering.
