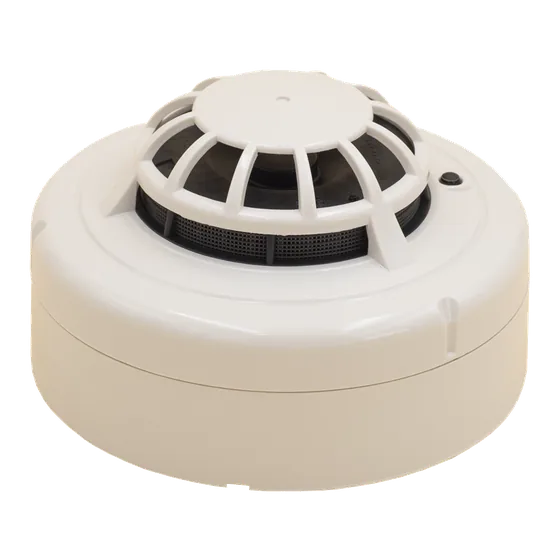

System Sensor 2351TEM Conventional Photo-Thermal Detector (Series 300)
A Series 300 photo-thermal detector whose on-board processor only signals an alarm once it is satisfied that a fire has started, reducing nuisance alarms while improving response.
- Optical chamber and thermal element monitored by an on-board processor
- Programmable sensitivity and automatic alarm test via the hand-held tool
- Reads chamber contamination and thermal element values
- Compatible with the S300ZDU zonal display unit
- 8 to 30VDC, -30 to +70°C, 105g plus 60g for the B401 base
- EN 54-7 and EN 54-5 Class A1R
Standards and approvals: EN54 (2000) Part 7, EN54 (2000) Part 5 Class A1R
Specifications
Specifications
| Specification | 2351TEM |
|---|---|
| Operating Voltage Range | 8 to 30VDC (Nominal 12/24VDC) |
| Maximum Alarm Current (LED On) | 80mA @ 24VDC (Limited by panel) |
| Application Temperature Range | -30°C to +70°C |
| Humidity | 0 to 95% Relative Humidity (non condensing) |
| Height | 38mm (plus 9mm for B401 base) |
| Diameter | 102mm |
| Weight | 105g (plus 60g for B401 base) |
| Max Wire Gauge for Terminals | 0.75mm2 to 2.5mm2 |
| Colour | Pantone Warm Grey 1C |
| Material | Bayblend FR110 |
Specifications as published by System Sensor. Please confirm the exact model with us before ordering.
