System Sensor ECO1003A Conventional Photoelectric Smoke Detector (ECO1000)
A low profile conventional photoelectric smoke detector with an optical chamber and an ASIC for quick, accurate detection, designed to extend the interval between cleanings.
Dealer for System Sensor

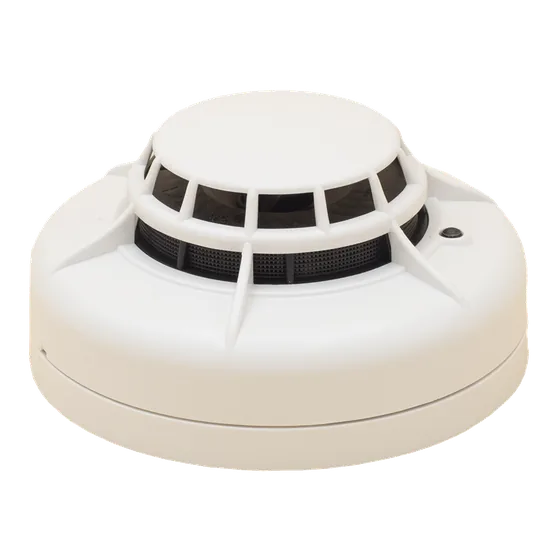

System Sensor ECO1002A Conventional Photo-Thermal Detector (ECO1000)
A multi-criteria conventional detector that combines an optical chamber and a thermal element with a microprocessor, for a faster response to real fires and fewer environmental false alarms.
- Photoelectric and thermal sensing
- 8 to 30VDC, works on 12 and 24VDC systems
- Latching LED, remote alarm test option, automatic drift compensation
- Bases with or without relay, tamper resistant feature
- -30 to +70°C, ABS, 78g plus 45g for the standard base
- EN 54-7, EN 54-5 Class A1R and MED 96/98/EC
Standards and approvals: EN54-7 (2000), EN54-5 (2000) Class A1R, MED 96/98/EC
Specifications
Specifications
| Specification | ECO1002A |
|---|---|
| Operating Voltage Range | 8 to 30VDC (Nominal 12/24VDC) |
| Maximum Standby Current @ 25°C | 75μA @ 24VDC |
| Maximum Permissible Alarm Current | 80mA (current limited by control panel) |
| Application Temperature Range (see note) | -30°C to +70°C |
| Humidity | 0 to 95% Relative Humidity (non condensing) |
| Height | 40.5mm (plus 9.5mm for standard base) |
| Diameter | 102mm |
| Weight | 78g (plus 45g for standard base) |
| Max Wire Gauge for Terminals | 0.4mm2 to 2.0m22 |
| Colour | Approximates to RAL9016 |
| Material | ABS |
Specifications as published by System Sensor. Please confirm the exact model with us before ordering.
More System Sensor Conventional Detectors
System Sensor ECO1004T, ECO1005 and ECO1005T Conventional Heat Detectors (ECO1000)
Three conventional heat detectors covering 58°C and 78°C fixed temperature and rate of rise, for small to medium systems such as small industrial units, retail units and guest houses.
System Sensor 2351E Conventional Photoelectric Smoke Detector (Series 300)
A Series 300 photoelectric smoke detector that works on a conventional zone but adds intelligent maintenance features through a hand-held tool.
System Sensor 2351TEM Conventional Photo-Thermal Detector (Series 300)
A Series 300 photo-thermal detector whose on-board processor only signals an alarm once it is satisfied that a fire has started, reducing nuisance alarms while improving response.
System Sensor Series 300 Conventional Heat Detectors (5351TE, 5351EA, 4351EA)
Three Series 300 heat detectors: 58°C fixed temperature (5351TE), 78°C fixed temperature (4351EA) and rate of rise (5351EA), with a latching LED and an optional remote LED annunciator.
System Sensor Vision 2020P Conventional Photoelectric Smoke Detector
A low profile photoelectric smoke detector from the Vision range, for small, straightforward systems, with a response to flaming fires similar to an ionisation detector but no radioactive source.
