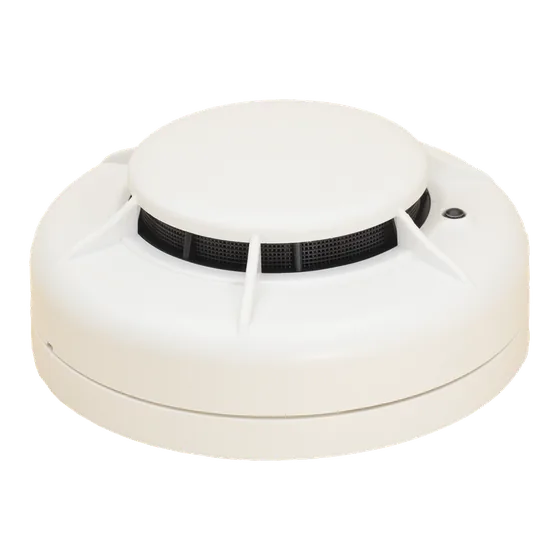

System Sensor Vision 2020P Conventional Photoelectric Smoke Detector
A low profile photoelectric smoke detector from the Vision range, for small, straightforward systems, with a response to flaming fires similar to an ionisation detector but no radioactive source.
- Chamber designed to reduce the effect of dust, extending cleaning intervals
- Automatic drift compensation, low current draw
- Latching LED with remote LED option
- 14 to 28VDC, -30 to +70°C, ABS
- Standard and deep bases with or without Schottky diode (2020B, 2020BSD, 2020DB, 2020DBSD)
- EN 54 parts 5 and 7, CPD approved
Standards and approvals: EN54 part 5 and part 7, CPD
Specifications
Specifications
| Specification | 2020P |
|---|---|
| Operating Voltage Range | 14 to 28VDC (24VDC) |
| Maximum Alarm Current | 70mA @ 28VDC |
| Application Temperature Range | -30°C to +70°C |
| Humidity | 5 to 95% Relative Humidity (non condensing) |
| Height | 32.5mm (plus 9.5mm for standard base) |
| Diameter | 102mm |
| Weight | 75g (plus 45g for standard base) |
| Max Wire Gauge for Terminals | 0.4mm2 to 2.0mm2 |
| Colour | Approximates to RAL9016 |
| Material | ABS |
Specifications as published by System Sensor. Please confirm the exact model with us before ordering.
