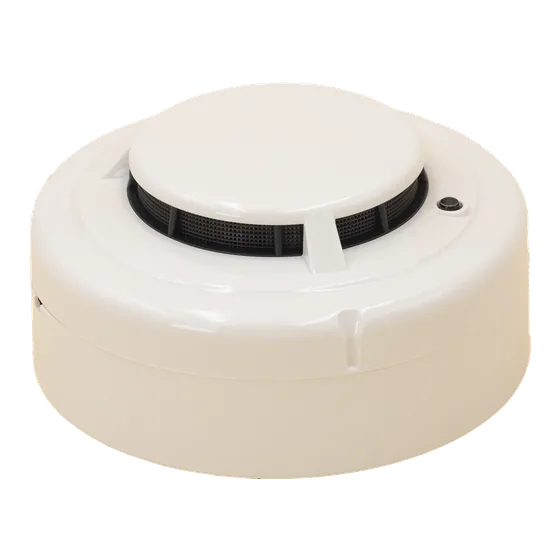

System Sensor 2351E Conventional Photoelectric Smoke Detector (Series 300)
A Series 300 photoelectric smoke detector that works on a conventional zone but adds intelligent maintenance features through a hand-held tool.
- Dust tolerant chamber, automatic drift compensation
- Programmable sensitivity and blink or no-blink LED via the hand-held tool
- Reads and writes last maintenance date and chamber contamination level
- Compatible with the S300ZDU zonal display unit; bi-colour LED, green normal, red alarm
- 8 to 30VDC, -30 to +70°C, 105g plus 60g for the B401 base
- EN 54-7
Standards and approvals: EN54 (2000) Part 7
Specifications
Specifications
| Specification | 2351E |
|---|---|
| Operating Voltage Range | 8 to 30VDC (Nominal 12/24VDC) |
| Maximum Alarm Current (LED On) | 80mA @ 24VDC (Limited by panel) |
| Application Temperature Range | -30°C to +70°C |
| Humidity | 0 to 95% Relative Humidity (non condensing) |
| Height | 38mm (plus 9mm for B401 base) |
| Diameter | 102mm |
| Weight | 105g (plus 60g for B401 base) |
| Max Wire Gauge for Terminals | 0.75mm2 to 2.5mm2 |
| Colour | Pantone Warm Grey 1C |
| Material | Bayblend FR110 |
Specifications as published by System Sensor. Please confirm the exact model with us before ordering.
