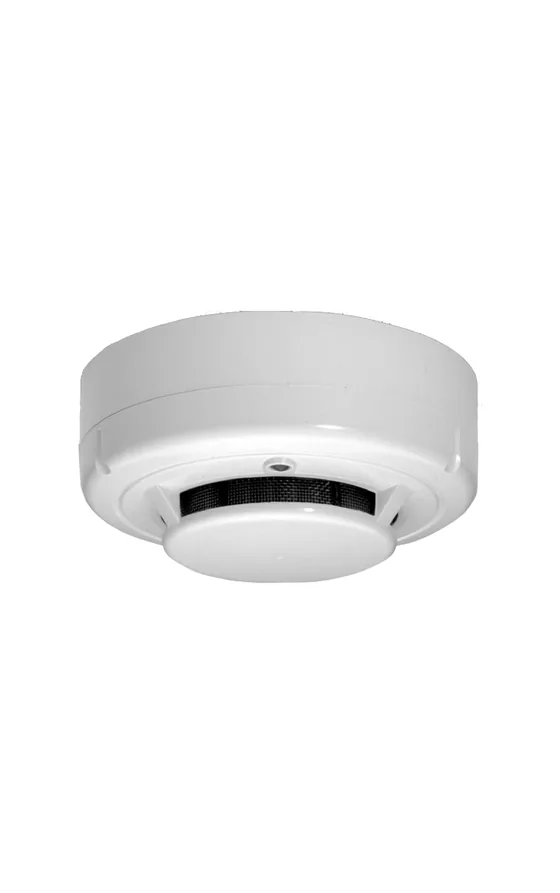

System Sensor 2351/EIA Intelligent and Advance Photoelectric Smoke Detector (Series 300)
A Series 300 photoelectric smoke detector with three preset alarm thresholds and advanced maintenance through a remote hand-held test unit. It fits Series 100 detector bases.
- Three preset alarm thresholds to suit the installation
- Advanced maintenance features via a remote hand-held test unit
- Backward compatible with Series 100 detector bases
- Bi-colour LED status indicator, automatic drift compensation
- 8 to 30VDC, 5 to 95% humidity, 105g plus 60g for the B401 base
Specifications
Specifications
| Specification | 2351/EIA |
|---|---|
| Operating Voltage Range | 8 to 30VDC (Nominal 12/24VDC) |
| Maximum Alarm Current (LED On) | 80mA @ 24VDC (Limited by panel) |
| Humidity | 5 to 95% Relative Humidity (non condensing) |
| Height | 38mm (plus 9mm for B401 base) |
| Diameter | 102mm |
| Weight | 105g (plus 60g for B401 base) |
| Max Wire Gauge for Terminals | 0.75mm2 to 2.5mm2 |
| Colour | Pantone Warm Grey 1C |
| Material | Bayblend FR110 |
Specifications as published by System Sensor. Please confirm the exact model with us before ordering.
