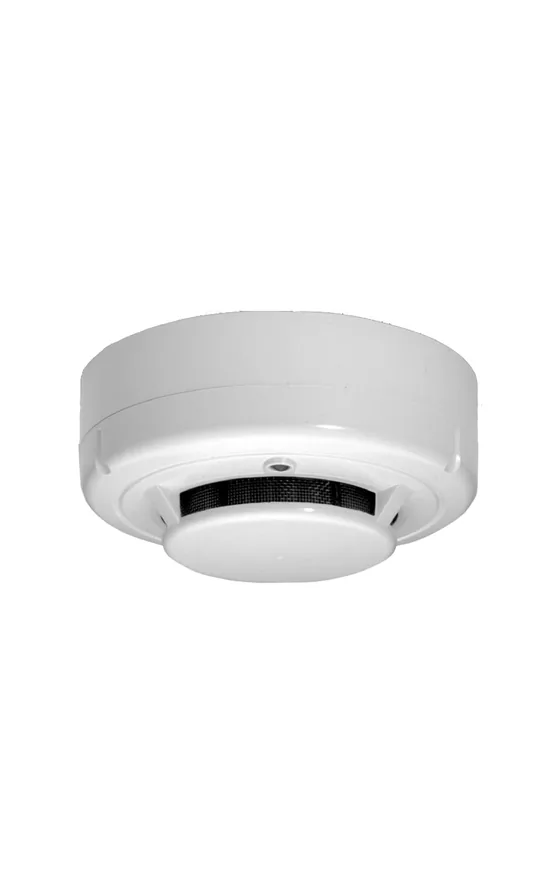

System Sensor 5351/E and 4351/E Conventional Heat Detectors (Series 300)
Series 300 rate of rise and fixed temperature heat detectors for places such as bars or kitchens where airborne contamination makes smoke detectors unsuitable.
- Rate of rise and fixed temperature heat sensing
- Backward compatible with Series 100 detector bases
- Bi-colour LED status indicator, low current draw
- 8 to 30VDC, -30 to +70°C, 5 to 95% humidity
Specifications
Specifications
| Specification | 5351/E | 4351/E |
|---|---|---|
| Operating Voltage Range | 8 to 30VDC (Nominal 12/24VDC) | 8 to 30VDC (Nominal 12/24VDC) |
| Maximum Alarm Current (LED On) | 80mA @ 24VDC (Limited by panel) | 80mA @ 24VDC (Limited by panel) |
| Application Temperature Range | -30°C to +70°C | -30°C to +70°C |
| Humidity | 5 to 95% Relative Humidity (non condensing) | 5 to 95% Relative Humidity (non condensing) |
| Height | 48mm (plus 9mm for B401 base) | 38mm (plus 9mm for B401 base) |
| Diameter | 102mm | 102mm |
| Weight | 105g (plus 60g for B401 base) | 105g (plus 60g for B401 base) |
| Max Wire Gauge for Terminals | 0.75mm 2 to 2.5mm2 | 0.75mm2 to 2.5mm2 |
| Colour | Pantone Warm Grey 1C | Pantone Warm Grey 1C |
| Material | Bayblend FR110 | Bayblend FR110 |
Specifications as published by System Sensor. Please confirm the exact model with us before ordering.
