System Sensor ECO1003A Conventional Photoelectric Smoke Detector (ECO1000)
A low profile conventional photoelectric smoke detector with an optical chamber and an ASIC for quick, accurate detection, designed to extend the interval between cleanings.
Dealer for System Sensor

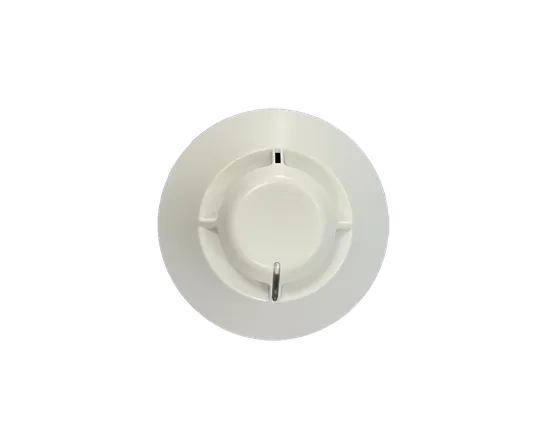

System Sensor HSE/CE Conventional Heat Detector
A low profile conventional heat detector tested to EN 54-5 Class A2R, supplied with its base in the pack.
- Tested to EN 54-5 Class A2R, CE certified
- Detector base included in the packaging
- Built-in magnet test for field testing
- Bi-colour LED visible through 360°, tamper-resistant design
- 8 to 30VDC non-polarised, 12 or 24VDC nominal
- White ABS housing, 91g including base
Standards and approvals: CE, EN54-5:2017+A1:2018 Class A2R
Specifications
Specifications
| Specification | HSE/CE |
|---|---|
| Operating Voltage Range | 8 to 30VDC (Nominal 12/24VDC), Non-Polarised |
| Humidity | 5 to 95% Relative Humidity (non condensing) |
| Height | 53mm (Including base) |
| Diameter | 99mm (detector only), 103mm (including base) |
| Weight | 91g (including base) |
| Max Wire Gauge for Terminals | 0.75mm 2 to 2.5mm2 |
| Color | White LC-FY2605 |
| Material | ABS15A1 |
Specifications as published by System Sensor. Please confirm the exact model with us before ordering.
More System Sensor Conventional Detectors
System Sensor ECO1002A Conventional Photo-Thermal Detector (ECO1000)
A multi-criteria conventional detector that combines an optical chamber and a thermal element with a microprocessor, for a faster response to real fires and fewer environmental false alarms.
System Sensor ECO1004T, ECO1005 and ECO1005T Conventional Heat Detectors (ECO1000)
Three conventional heat detectors covering 58°C and 78°C fixed temperature and rate of rise, for small to medium systems such as small industrial units, retail units and guest houses.
System Sensor 2351E Conventional Photoelectric Smoke Detector (Series 300)
A Series 300 photoelectric smoke detector that works on a conventional zone but adds intelligent maintenance features through a hand-held tool.
System Sensor 2351TEM Conventional Photo-Thermal Detector (Series 300)
A Series 300 photo-thermal detector whose on-board processor only signals an alarm once it is satisfied that a fire has started, reducing nuisance alarms while improving response.
System Sensor Series 300 Conventional Heat Detectors (5351TE, 5351EA, 4351EA)
Three Series 300 heat detectors: 58°C fixed temperature (5351TE), 78°C fixed temperature (4351EA) and rate of rise (5351EA), with a latching LED and an optional remote LED annunciator.
