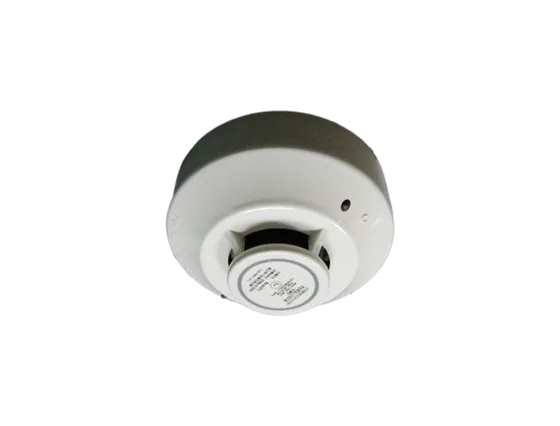

System Sensor JTWB-BCD-5151EIS Intrinsically Safe Conventional Heat Detector
An intrinsically safe conventional 2-wire heat detector with a thermistor sensing circuit, for open area protection with 2-wire panels through an interface module.
- Thermistor sensing circuit for fast, accurate response
- Two red LEDs blink in standby, latch on in alarm and stop blinking in fault
- LED visible through 360°, tamper-resistant design
- SEMS screws on the B401 plug-in base for easy wiring
- 8.5 to 28VDC, 80g
Specifications
Specifications
| Specification | JTWB-BCD-5151EIS |
|---|---|
| Dimension: | 104mm(Diameter, JTY-GD-2151EIS/JTWB-BCD-5151EIS） |
| Height: | 51mm(JTY-GD-2151EIS, JTWB-BCD-5151EIS) |
| Weight: | 88g(JTY-GD-2151EIS), 80g(JTWB-BCD-5151EIS) |
| Input Voltage: | 8.5 to 28VDC(JTY-GD-2151EIS), 8.5 to 28VDC(JTWB-BCD-5151EIS) |
| Installation Temperature: | -10℃ to 55℃(JTY-GD-2151EIS), -10℃ to 50℃(JTWB-BCD-5151EIS) |
| Operating Humidity Range: | 10% to 95% Relative Humidity ( non-condensing, JTY-GD-2151EIS/JTWB-BCD-5151EIS) |
| Latching Alarm: | Reset by momentary power interruption |
| Sensitivity: | 63℃ fixed or 10℃/min rate-of-rise(JTWB-BCD-5151EIS) |
| Intrinsic Safety Rating: | Exia II CT6 (JTY-GD-2151EIS, JTWB-BCD-5151EIS) |
Specifications as published by System Sensor. Please confirm the exact model with us before ordering.
