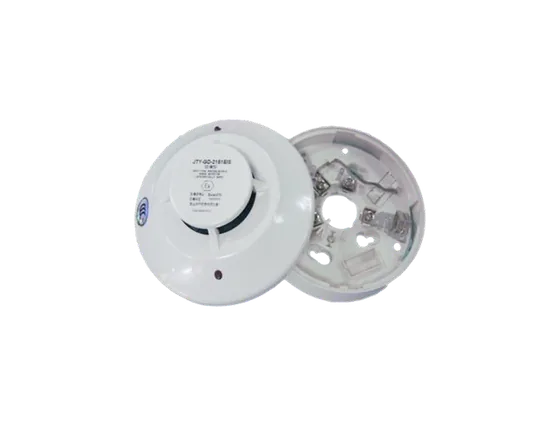

System Sensor JTY-GD-2151EIS Intrinsically Safe Conventional Smoke Detector
An intrinsically safe conventional photoelectric smoke detector for open area protection, used with 2-wire control panels through an interface module.
- Photoelectric sensing chamber
- Two LEDs visible through 360°; latches in alarm until power is interrupted
- Tested with a magnet that operates an internal reed switch
- SEMS screws on the B401 plug-in base for easy wiring
- Tamper-resistant design, low operating current
- 8.5 to 28VDC, 88g
Specifications
Specifications
| Specification | JTY-GD-2151EIS |
|---|---|
| Dimension: | 104mm(Diameter, JTY-GD-2151EIS/JTWB-BCD-5151EIS） |
| Height: | 51mm(JTY-GD-2151EIS, JTWB-BCD-5151EIS) |
| Weight: | 88g(JTY-GD-2151EIS), 80g(JTWB-BCD-5151EIS) |
| Input Voltage: | 8.5 to 28VDC(JTY-GD-2151EIS), 8.5 to 28VDC(JTWB-BCD-5151EIS) |
| Installation Temperature: | -10℃ to 55℃(JTY-GD-2151EIS), -10℃ to 50℃(JTWB-BCD-5151EIS) |
| Operating Humidity Range: | 10% to 95% Relative Humidity ( non-condensing, JTY-GD-2151EIS/JTWB-BCD-5151EIS) |
| Latching Alarm: | Reset by momentary power interruption |
| Sensitivity: | 63℃ fixed or 10℃/min rate-of-rise(JTWB-BCD-5151EIS) |
| Intrinsic Safety Rating: | Exia II CT6 (JTY-GD-2151EIS, JTWB-BCD-5151EIS) |
Specifications as published by System Sensor. Please confirm the exact model with us before ordering.
