Apollo Intelligent Manual Call Point, Red, with Isolator
An addressable manual call point for raising the fire alarm by hand, with a resettable operating element and a built-in isolator. It works with XP95, Discovery and CoreProtocol.

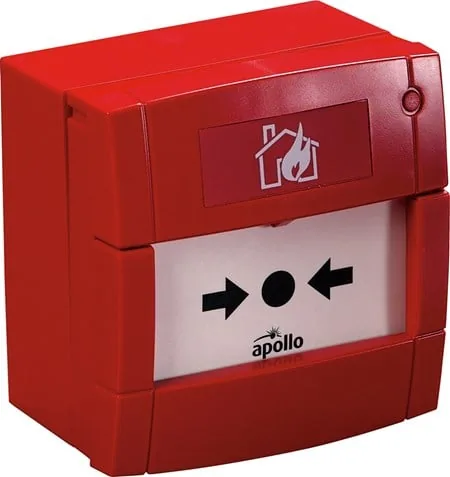

Authorised distributor for ApolloApollo Conventional I.S. Manual Call Point without LED
An intrinsically safe conventional call point for areas where explosive atmospheres are or may be present, suitable for Zones 0, 1 and 2.
- Suitable for intrinsically safe applications
- Suitable for use in Zones 0, 1 and 2
- EN 54-11 certified
- CCS approval, IP24D, -10 to 55°C
- 10 year warranty
Standards and approvals: EN 54-11, CCS
Specifications
Specifications
| Specification | 55100-031APO |
|---|---|
| Warranty | 10 year |
| Colour | Red |
| Weight | 180g |
| Product length | 89mm | 3.5in |
| Product width | 59.2mm | 2.33in |
| Product depth | 93mm | 3.66in |
| Key type | KAC, Manal, Call, Point test & reset key |
| Humidity (max) | 93%, RH |
| Humidity (min) | 0%, RH |
| Humidity | 0% to 93% (no condensation or icing) |
| Humidity Note | no condensation or icing |
| Operating temperature (min) | -10°C | 14°F |
| Operating temperature (max) | 55°C | 131°F |
| Operating temperature | -10 to 55°C | 14 to 131°F |
| IP rating Value | IP24D |
Specifications as published by Apollo. Please confirm the exact model with us before ordering.
