Apollo Intelligent Manual Call Point, Red, with Isolator
An addressable manual call point for raising the fire alarm by hand, with a resettable operating element and a built-in isolator. It works with XP95, Discovery and CoreProtocol.

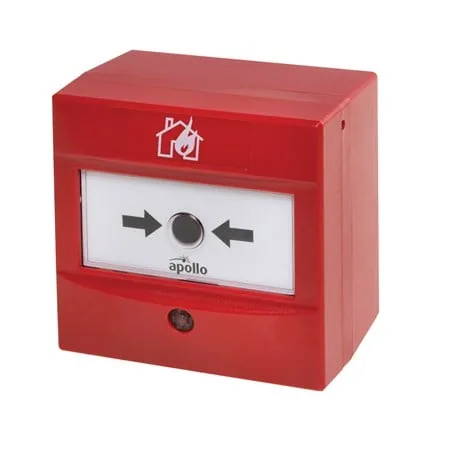

Authorised distributor for ApolloApollo Conventional Manual Call Point (Series 65)
A conventional call point for raising the fire alarm by hand, with a resettable operating element and an LED viewable over 170°.
- EN 54-11 certified
- Resettable operating element
- LED viewable over 170°
- Semi flush or surface mounting
- IP44, -40 to 70°C
- CPR approval, 10 year warranty
Standards and approvals: CPR
Specifications
Specifications
| Specification | SC2900-001APO |
|---|---|
| Warranty | 10 year |
| Wireless | No |
| Colour | Red |
| Weight | 150g |
| Product length | 90mm | 3.54in |
| Product width | 90mm | 3.54in |
| Product depth | 63mm | 2.48in |
| Detection principle | Operation of a switch. |
| Key type | Apollo, Manal, Call, Point reset key |
| Operating element | Resettable element |
| Action | Single |
| Humidity (max) | 95%, RH |
| Humidity (min) | 0%, RH |
| Humidity | 0% to 95% (no condensation or icing) |
| Humidity Note | no condensation or icing |
| Operating temperature (min) | -40°C | -40°F |
| Operating temperature (max) | 70°C | 158°F |
| Operating temperature | -40 to 70°C | -40 to 158°F |
| IP rating Value | IP44 |
Specifications as published by Apollo. Please confirm the exact model with us before ordering.
