Apollo Intelligent Manual Call Point, Red, with Isolator
An addressable manual call point for raising the fire alarm by hand, with a resettable operating element and a built-in isolator. It works with XP95, Discovery and CoreProtocol.

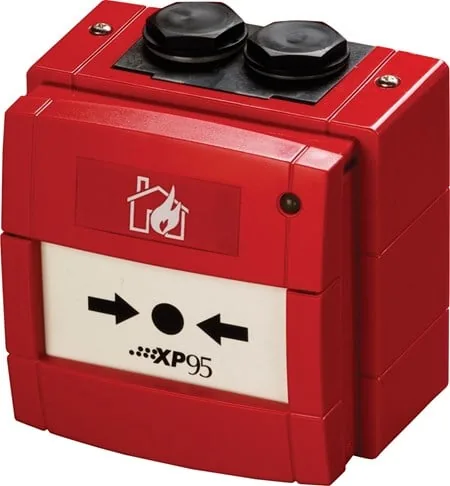

Authorised distributor for ApolloApollo XP95 I.S. Manual Call Point (Intrinsically Safe)
An intrinsically safe addressable call point for areas where explosive atmospheres are or may be present, suitable for Zones 0, 1 and 2 and for weatherproof use.
- Suitable for use in Zones 0, 1 and 2
- IP67, for intrinsically safe and weatherproof applications
- EN 54-11 certified, reports an alarm in under 0.2 seconds
- XP95 and Discovery compatible
- Approvals include BASEEFA, IECEx, PESO (CCoE), LPCB, CPR and MED
- 3 year warranty
Standards and approvals: BASEEFA, CCCf, CCS, DNV.GL, IECEx, ESC, LPCB, CPR, PESO (CCoE), MED
Specifications
Specifications
| Specification | 55100-940APO |
|---|---|
| Warranty | 3 year |
| Colour | Red |
| Weight | 240g |
| Materials housing | PolycarbonateABS |
| Product length | 97.5mm | 3.84in |
| Product width | 93mm | 3.66in |
| Product depth | 71mm | 2.8in |
| Detection principle | Operation of a switch. |
| Key type | KAC, Manal, Call, Point test & reset key |
| Protocol voltage (max) | 9V |
| Protocol voltage (min) | 5V |
| Protocol voltage | 5 to 9V peak to peak |
| Power-up surge current | 1mA |
| Quiescent current | 300μA |
| Quiescent current tested at | 24V dc |
| Polarity | L1 &, L2 are polarity sensitive |
| Humidity (max) | 95%, RH |
| Humidity (min) | 0%, RH |
| IP rating Value | IP67 |
Specifications as published by Apollo. Please confirm the exact model with us before ordering.
