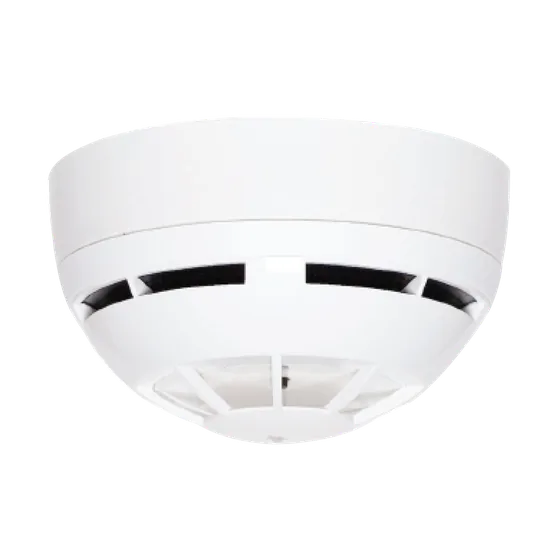

Authorised distributor for CeasefireConventional heat detector with a Class A1R response, certified by LPCB, with a double dust trap chamber and a central LED visible from all around.
Standards and approvals: EN 54-7, LPCB
| Specification | TI-002265 |
|---|---|
| Type | Conventional |
| Model | TI-002265 |
| Operating Voltage | 10-30V DC |
| Standby Current Consumption | 90µA @ 24V DC |
| Max. Alarm Current Consumption | 40mA |
| Max. Remote Output Current | 18mA |
| Ambient Temperature | -10°C to +55°C |
| Relative Humidity | 95% (non condensing) |
| Dimensions (Diameter x Height) | 110mm x 54mm (depth) |
| Standard | EN 54-7 |
| LED Indicator | Bi-coloured LED indicator with 360o visibility. |
| Certification/Approval Authority | LPCB |
| Protection Class | IP40 |
| Product Warranty | 1 Year Warranty |
Specifications as published by Ceasefire. Please confirm the exact model with us before ordering.
