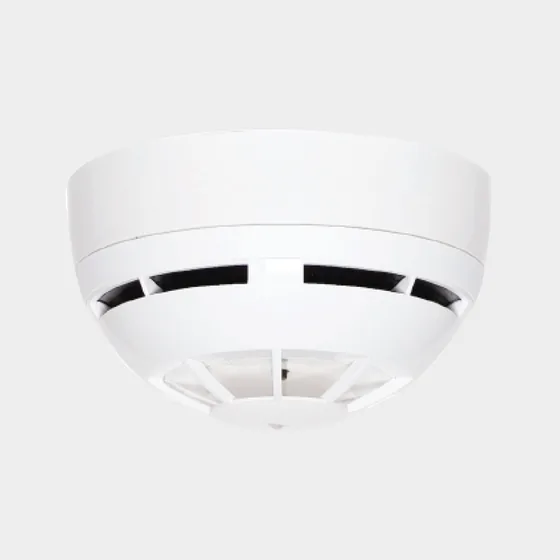

Authorised distributor for CeasefireConventional heat detector with a 78 C alarm point (Class BS), designed and tested to EN 54-5 and certified by LPCB.
Standards and approvals: EN 54-5, LPCB
| Specification | TI-002267 |
|---|---|
| Type | Conventional |
| Model | TI-002267 |
| Alarm Temperature | 78oC (Class BS) |
| Operating Voltage | 10-30V DC |
| Standby Current Consumption at 24V | 90µA @ 24V DC |
| Max. Alarm Current Consumption | 40mA |
| Max. Remote Output Current | 18mA |
| Ambient Temperature | -10°C to +55°C |
| Relative Humidity | 95% (non condensing) |
| Dimensions (Diameter x Height) | 110mm (Ø) x 54mm (depth) |
| Standard | EN 54-5 |
| Certification/Approval Authority | LPCB |
| Protection Class | IP40 |
| Product Warranty | 1 Year Warranty |
Specifications as published by Ceasefire. Please confirm the exact model with us before ordering.
