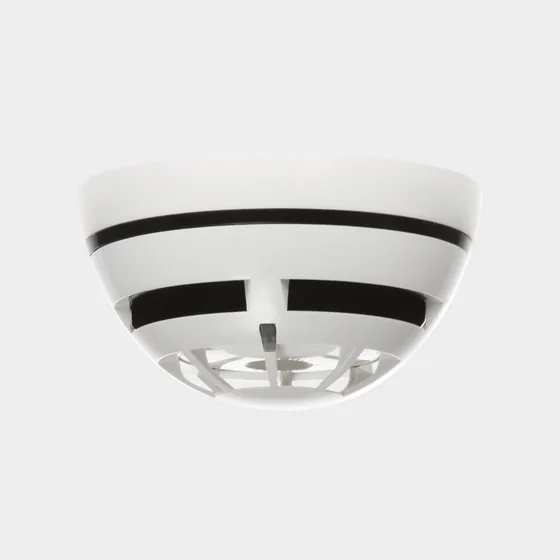

Authorised distributor for CeasefireAddressable detector that combines optical smoke and heat sensing, with 9 modes of operation and 4 smoke sensitivity levels. The TI-002213 version has a built-in isolator to EN 54-17; the TI-002214 is without.
Standards and approvals: EN 54-7, EN 54-5, EN 54-17, LPCB
| Specification | TI-002213 | TI-002214 |
|---|---|---|
| Type | Addressable | Addressable |
| Model | TI-002213 | TI-002214 |
| Number of Sensitivity Levels | 4 | 4 |
| Modes of Operation | 9 | 9 |
| Sensitivity Levels | Level 1 : 2.0%/m Level 2 : 2.7%/m Level 3 : 3.3%/m Level 4 : 4.0%/m | Level 1 : 2.0%/m Level 2 : 2.7%/m Level 3 : 3.3%/m Level 4 : 4.0%/m |
| Alarm Temperature | 58oC (Class A1R) | 58oC (Class A1R) |
| Operating Voltage | 15-40V DC | 15-40V DC |
| Standby Current Consumption at 24V | 85µA @ 24V DC | 85µA @ 24V DC |
| Remote Output Max Current | 20mA | 20mA |
| Ambient Temperature | : -10°C to +55°C | : -10°C to +55°C |
| Relative Humidity | 95% (non condensing) | 95% (non condensing) |
| Dimensions (Diameter x Height) | 110mm (Ø) x 60mm (depth) | 110mm (Ø) x 60mm (depth) |
| Standard | EN 54-7; EN 54-5; ; EN 54-17 | EN 54-7; EN 54-5 |
| Certification/Approval Authority | LPCB | LPCB |
| LED Indicator | Bi-coloured LED indicator with 360o visibility. | Bi-coloured LED indicator with 360o visibility. |
| Output for Response Indicator/ Remote Indicator | Yes | Yes |
| Short Circuit/Fault Isolator | Built-in dual isolator. | |
| Protection Class | IP40 | IP40 |
| Mode of Addressing | Electronically Addressed | Electronically Addressed |
| Product Warranty | 1 Year Warranty | 1 Year Warranty |
Specifications as published by Ceasefire. Please confirm the exact model with us before ordering.
Conventional fire alarm panels in 2, 4, 8, 12, 16, 24 and 32 zone sizes, approved to EN 54-2 and 4. The 8 zone and larger panels can be networked, up to 8 control panels, and work with repeater or remote display units.
Addressable fire alarm panels in 1 loop, 1 to 2 loop and 1 to 4 loop versions, each loop taking up to 240 addressable detectors and devices. Approved to EN 54-2, EN 54-4 and EN 54-13, with 200 fire zones per panel and up to 2000 zones over the Intelli-Sense-NeT network.
Addressable panel that expands from 2 to 8 loops with plug-in loop driver boards, taking up to 240 devices per loop, offered for standard (ST) or fault tolerant (FT) networks. Approved to EN 54-2, EN 54-4 and EN 54-13.
Conventional control panel for gas suppression, with 3 detection zones and 1 extinguishing zone that can drive solenoid or Metron actuators. A large LCD countdown timer shows the time to release.
Repeater panel that shows fire and fault status for 12 zones away from the main panel, with controls enabled by key switch or code entry. It has its own 1.25 A power supply with battery backup.
Remote display for conventional fire alarm systems with a 4 x 40 character backlit LCD and full system control. It runs from a 24 V DC supply and has fire and fault outputs.
A battery operated, Wi-Fi enabled photoelectric smoke detector from the IMPACT by Honeywell range. When smoke reaches its alarm threshold it sounds a buzzer, flashes an LED and sends real-time alerts to a smartphone through the IMPACT by Honeywell app.
A battery operated standalone smoke alarm with photoelectric sensing that sounds an alarm and lights a red LED when smoke reaches its threshold. It runs on two AA batteries and also warns of a low battery or a chamber fault.
An intelligent addressable photoelectric smoke detector with an optical chamber that senses smoke from a wide range of fires, and sensitivity that is programmable and monitored by the panel.
An intelligent photoelectric smoke detector with dual thermistors that add 135°F (57°C) fixed temperature heat sensing in the same head.
An S200A plug-in photoelectric smoke detector listed with the DXc and ZXSe panels. Its detection chamber is designed to cut false alarms from dust, insects and other debris.
An S200A multi-criteria detector that adds 58°C fixed temperature and rate of rise thermal sensing to a photoelectric smoke sensor, for better false alarm immunity and faster response to a wide range of fires.
