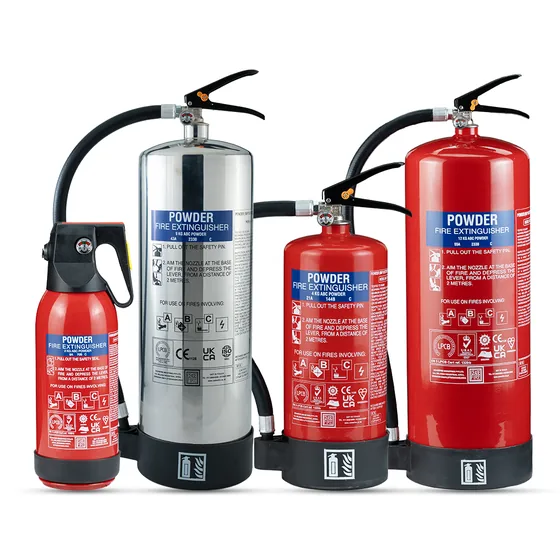

Authorised distributor for CeasefireEN approved stored pressure ABC portable in 2, 4, 6, 9 and 12 kg, with MAP 50 or MAP 90 powder in mild steel bodies. It carries LPCB, BSI Kitemark, PED, MED and UKCA MED certification.
Standards and approvals: EUROCERT, LPCB, BSI, BRE GLOBAL, PED, EN3, KITEMARK, CE, MED, BSI Kitemark, UKCA-MED
Sizes: 2 kg to 12 kg
| Specification | 2 kg | 4 kg | 6 kg | 9 kg | 12 kg | MAP50 2 kg MS SP (SQUEEZE GRIP) | MAP50 2 kg MS SP (GUN HOUSING) | MAP50 4 kg MS SP | MAP50 6 kg MS SP | MAP50 9 kg MS SP | MAP50 12 kg MS SP | MAP90 2 kg MS SP (GUN HOUSING) | MAP90 4 kg MS SP | MAP90 6 kg MS SP | MAP90 9 kg MS SP | MAP90 12 kg MS SP |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Map 50 | 8A, 70B | 21A, 144B | 27A, 183B | 43A, 233B | 55A, 233B | |||||||||||
| MAP 90 | 13A, 55B | 21A, 144B | 27A, 183B | 43A, 233B | 55A, 233B | |||||||||||
| PRODUCT CODE | CF-000804 | CF-000731 | CF-000732 | CF-000733 | CF-000734 | CF-000735 | CF-000722 | CF-000723 | CF-000724 | CF-000725 | CF-000726 | |||||
| AGENT | ABC POWDER MAP 50 | ABC POWDER MAP 50 | ABC POWDER MAP 50 | ABC POWDER MAP 50 | ABC POWDER MAP 50 | ABC POWDER MAP 50 | ABC POWDER MAP 90 | ABC POWDER MAP 90 | ABC POWDER MAP 90 | ABC POWDER MAP 90 | ABC POWDER MAP 90 | |||||
| STORED PRESSURE / CARTRIDGE | STORED PRESSURE | STORED PRESSURE | STORED PRESSURE | STORED PRESSURE | STORED PRESSURE | STORED PRESSURE | STORED PRESSURE | STORED PRESSURE | STORED PRESSURE | STORED PRESSURE | STORED PRESSURE | |||||
| CERTIFICATION OR VERIFING BODY | EUROCERT,LPCB,BSI,BRE GLOBAL | EUROCERT,LPCB,BSI,BRE GLOBAL | EUROCERT,LPCB,BSI,BRE GLOBAL | EUROCERT,LPCB,BSI,BRE GLOBAL | EUROCERT,LPCB,BSI,BRE GLOBAL | EUROCERT,LPCB,BRE GLOBAL | EUROCERT,LPCB,BSI,BRE GLOBAL | EUROCERT, LPCB,BSI | EUROCERT,LPCB,BSI,BRE GLOBAL | EUROCERT,LPCB,BSI,BRE GLOBAL | EUROCERT,LPCB | |||||
| CERTIFICATION TYPE | PED,EN3 | PED,EN3 | PED,EN3 | PED,EN3 | PED,EN3 | PED,EN3,MED | PED,EN3 | PED,EN3 | PED,EN3 | PED,EN3 | PED,EN3 | |||||
| LPCB MARKING | YES | YES | YES | YES | YES | YES | YES | YES | YES | YES | YES | |||||
| KITEMARK MARKING | YES | YES | YES | YES | YES | NA | YES | YES | YES | YES | NA | |||||
| CE MARKING | YES | YES | YES | YES | YES | YES | YES | YES | YES | YES | YES | |||||
| WHEEL / MED MARKING | YES | YES | YES | YES | YES | YES | YES | NA | YES | YES | NA | |||||
| THROW | 3.5 METERS | 3.5 METERS | 4 METERS | 6 METERS | 7 METERS | 7 METERS | 3.5 METERS | 4 METERS | 6 METERS | 7 METERS | 7 METERS | |||||
| GROSS WEIGHT (APPROX) | 3.40KG | 3.40 KG | 6.50 KG | 9.30 KG | 13.40 KG | 17.70KG | 3.4 0KG | 6.50 KG | 9.30 KG | 13.40 KG | 17.70 KG | |||||
| NET MASS | 1.94 TO 2.06 KG | 1.94 TO 2.06 KG | 3.92 TO 4.08 KG | 5.88 TO 6.12 KG | 8.82 TO 9.18 KG | 11.76 TO 12.24 KG | 1.94 TO 2.06 KG | 3.92 TO 4.08 KG | 5.88 TO 6.12 KG | 8.82 TO 9.18 KG | 11.76 TO 12.24 KG | |||||
| DISCHARGE MECHANISM | SQUEEZE GRIP | THUMB TRIGGERED | SQUEEZE GRIP | SQUEEZE GRIP | SQUEEZE GRIP | SQUEEZE GRIP | THUMB TRIGGERED | SQUEEZE GRIP | SQUEEZE GRIP | SQUEEZE GRIP | SQUEEZE GRIP | |||||
| APPLICABLE ON FIRES | A, B, C, & ELECTRICAL STARTED FIRE | A, B, C, & ELECTRICAL STARTED FIRE | A, B, C, & ELECTRICAL STARTED FIRE | A, B, C, & ELECTRICAL STARTED FIRE | A, B, C, & ELECTRICAL STARTED FIRE | A, B, C, & ELECTRICAL STARTED FIRE | A, B, C, & ELECTRICAL STARTED FIRE | A, B, C, & ELECTRICAL STARTED FIRE | A, B, C, & ELECTRICAL STARTED FIRE | A, B, C, & ELECTRICAL STARTED FIRE | A, B, C, & ELECTRICAL STARTED FIRE | |||||
| FIRE RATINGS | 8A, 70B | 8A, 70B | 21A, 144B | 27A, 183B | 43A, 233B | 55A, 233B | 13A, 55B | 21A, 144B | 27A, 183B | 43A, 233B | 55A, 233B | |||||
| CAN CONSTRUCTION | DEEP DRAWN & MIG WELDED | DEEP DRAWN & MIG WELDED | DEEP DRAWN & MIG WELDED | DEEP DRAWN & MIG WELDED | DEEP DRAWN & MIG WELDED | DEEP DRAWN & MIG WELDED | DEEP DRAWN & MIG WELDED | DEEP DRAWN & MIG WELDED | DEEP DRAWN & MIG WELDED | DEEP DRAWN & MIG WELDED | DEEP DRAWN & MIG WELDED | |||||
| VALVE / CAP CONSTRUCTION | FORGING AND MACHINING | FORGING AND MACHINING | FORGING AND MACHINING | FORGING AND MACHINING | FORGING AND MACHINING | FORGING AND MACHINING | FORGING AND MACHINING | FORGING AND MACHINING | FORGING AND MACHINING | FORGING AND MACHINING | FORGING AND MACHINING | |||||
| EXTERNAL COATING | EPOXY POLYESTER POWDER | EPOXY POLYESTER POWDER | EPOXY POLYESTER POWDER | EPOXY POLYESTER POWDER | EPOXY POLYESTER POWDER | EPOXY POLYESTER POWDER | EPOXY POLYESTER POWDER | EPOXY POLYESTER POWDER | EPOXY POLYESTER POWDER | EPOXY POLYESTER POWDER | EPOXY POLYESTER POWDER | |||||
| HELIUM LEAK DETECTION TESTING | YES | YES | YES | YES | YES | YES | YES | YES | YES | YES | YES | |||||
| WARRANTY IN YEAR | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | |||||
| G.A. DRAWING NUMBER | CF/SP-2LB-EXP50/GA/02 | CF/SP-2LB-50/GA/03 | CF/SP-4LB-50/GA/03 | CF/SP-6LB-50/GA/03 | CF/SP-9LB-50/GA/03 | CF/SP-12-90/GA/03 | CF/SP-2LB/GA/03 | CF/SP-4LB/GA/03 | CF/SP-6LB/GA/03 | CF/SP-9LB/GA/03 | CF/SP-12-90/GA/03 | |||||
| WORKING PRESSURE | 15 BAR | 15 BAR | 15 BAR | 15 BAR | 15 BAR | 15 BAR | 15 BAR | 15 BAR | 15 BAR | 15 BAR | 15 BAR | |||||
| HYDROSTATIC TEST PRESSURE | 35 BAR | 35 BAR | 35 BAR | 35 BAR | 35 BAR | 35 BAR | 35 BAR | 35 BAR | 35 BAR | 35 BAR | 35 BAR | |||||
| DIA. OF SHELL (OD) | 108 MM | 108 MM | 140 MM | 160 MM | 175 MM | 204 MM | 108 MM | 140 MM | 160 MM | 175 MM | 204 MM | |||||
| APPROX. HEIGHT OF FIRE EXT. | 370 MM | 345 MM | 440 MM | 485 MM | 615 MM | 665 MM | 345 MM | 440 MM | 485 MM | 615 MM | 665 MM | |||||
| BODY THICKNESS (APPROX) | 1.4 MM | 1.4 MM | 1.2 MM | 1.4 MM | 1.4 MM | 1.6 MM | 1.4 MM | 1.2 MM | 1.4 MM | 1.4 MM | 1.6 MM | |||||
| CYLINDER MATERIAL SPEC. | STEEL CR2(DC01) | STEEL CR2(DC01) | STEEL CR2(DC01) | STEEL CR2(DC01) | STEEL CR2(DC01) | STEEL CR2(DC01) | STEEL CR2(DC01) | STEEL CR2(DC01) | STEEL CR2(DC01) | STEEL CR2(DC01) | STEEL CR2(DC01) | |||||
| OPERATING TEMPERATURE | -30OC TO +60OC | -30OC TO +60OC | -30OC TO +60OC | -30OC TO +60OC | -30OC TO +60OC | -30OC TO +60OC | -30OC TO +60OC | -30OC TO +60OC | -30OC TO +60OC | -30OC TO +60OC | -30OC TO +60OC | |||||
| SCHRAEDER VALVE | YES | NA | YES | YES | YES | YES | NA | YES | YES | YES | YES | |||||
| PRESSURE RELIEF VALVE | YES | NA | YES | YES | YES | YES | NA | YES | YES | YES | YES |
Specifications as published by Ceasefire. Please confirm the exact model with us before ordering.
Designer finish ABC extinguisher for homes and cars in 500 g and 1 kg, filled with MAP 90 powder and operated by a thumb trigger. It is made to IS 15683 with PED certification and has a minimum throw of 3 m.
Compact stored pressure ABC extinguisher for homes and cars in 500 g and 1 kg, with MAP 90 or MAP 50 powder. It is light and easy to handle, and works on Class A, B, C and electrically started fires.
EN approved 1 kg ABC extinguisher for homes and cars with MAP 50 or MAP 90 powder, rated 5A, 34B. It carries LPCB, BSI Kitemark and MED marking and has a 3 m throw.
Sizes: 2 kg, 4 kg, 6 kg, 9 kg
Stored pressure ABC portable with MAP 50 powder in 2, 4, 6 and 9 kg, offered with mild steel or stainless steel bodies. It is BIS, LPCB, BSI Kitemark and PED certified to IS 15683 and throws more than 2 m.
Sizes: 1 kg to 9 kg
Stored pressure ABC portable with MAP 90 powder in 1, 2, 4, 6 and 9 kg mild steel bodies, for schools, offices, hospitals and factories. It is BIS, LPCB, BSI Kitemark and PED certified to IS 15683.
Sizes: 4 kg, 6 kg, 9 kg, 12 kg
Cartridge operated ABC portable with MAP 50 powder in 4, 6, 9 and 12 kg, pressurised only when the trigger is pressed. It can be refilled on the spot, which avoids sending units back to a factory.
Sizes: 1 kg to 9 kg
Portable stored pressure extinguisher filled with UL listed MAP 90 percent mono ammonium phosphate powder, available from 1 kg to 9 kg. The 1 kg size is rated 1A:34B with about 9 seconds discharge and 2 m throw.
Sizes: 1 kg to 9 kg
Regular quality (RQ) portable stored pressure extinguisher in 1, 2, 4, 6 and 9 kg. Kanex lists the 1 kg size with MAP 40 powder, rated 1A:21B, and the 2 to 9 kg sizes with MAP 50 powder.
Sizes: 1 kg to 9 kg
Portable stored pressure extinguisher in 1, 2, 4, 6 and 9 kg, filled with silicon coated MAP 50 or MAP 90 powder as required and pressurised with dry nitrogen. The 1 kg size is listed at 1A:21B with a minimum effective discharge time of 8 seconds.
Sizes: 1 kg, 2 kg
Sleek, compact stored pressure extinguisher in 1 and 2 kg with MAP 90 ABC powder, designed to suit the look of the premises it protects. The 1 kg size is rated 1A:34B with a minimum effective discharge time of 9 seconds.
Sizes: 1 kg
A stored pressure extinguisher charged with mono-ammonium phosphate based ABC dry chemical powder under nitrogen, made to IS 2171 : 2024 in 1, 2, 4, 6 and 9 Kg sizes. Bodies are available in mild steel or stainless steel depending on the model.
Sizes: 1 kg to 9 kg
A portable ABC dry powder extinguisher with a mild steel cylinder, kept under pressure and ready to discharge, for class A, B and C fires in buildings and vehicles. Offered in 1, 2, 4, 6 and 9 kg; the 4, 6 and 9 kg listings are marked ISI.
