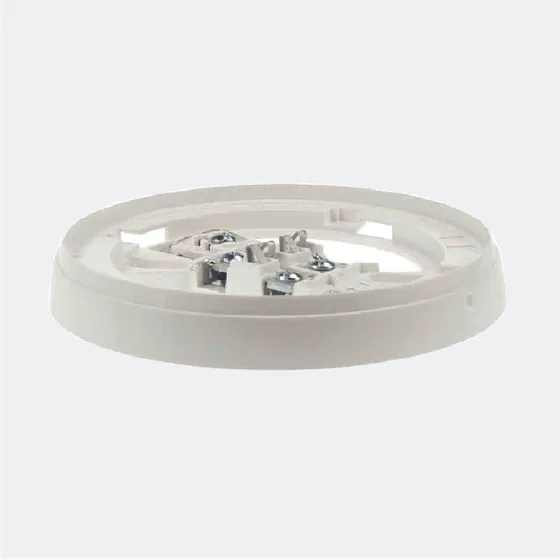

Authorised distributor for CeasefireDetector base compatible with both Pro-Sense and Intelli-Sense detectors, 110 mm across and 16 mm deep.
| Specification | TI-002270 |
|---|---|
| Model | TI-002270 |
| Compatibility | Pro-Sense/Intelli-Sense detectors |
| Dimensions (Diameter x Depth) | 110mm (Ø) x 16mm (depth) |
| Ambient Temperature | -10°C to +55°C |
| Relative Humidity | 95% (non condensing) |
| Product Warranty | 1 Year Warranty |
Specifications as published by Ceasefire. Please confirm the exact model with us before ordering.
Conventional fire alarm panels in 2, 4, 8, 12, 16, 24 and 32 zone sizes, approved to EN 54-2 and 4. The 8 zone and larger panels can be networked, up to 8 control panels, and work with repeater or remote display units.
Addressable fire alarm panels in 1 loop, 1 to 2 loop and 1 to 4 loop versions, each loop taking up to 240 addressable detectors and devices. Approved to EN 54-2, EN 54-4 and EN 54-13, with 200 fire zones per panel and up to 2000 zones over the Intelli-Sense-NeT network.
Addressable panel that expands from 2 to 8 loops with plug-in loop driver boards, taking up to 240 devices per loop, offered for standard (ST) or fault tolerant (FT) networks. Approved to EN 54-2, EN 54-4 and EN 54-13.
Conventional control panel for gas suppression, with 3 detection zones and 1 extinguishing zone that can drive solenoid or Metron actuators. A large LCD countdown timer shows the time to release.
Repeater panel that shows fire and fault status for 12 zones away from the main panel, with controls enabled by key switch or code entry. It has its own 1.25 A power supply with battery backup.
Remote display for conventional fire alarm systems with a 4 x 40 character backlit LCD and full system control. It runs from a 24 V DC supply and has fire and fault outputs.
A 4 inch standard European flangeless mounting base for a plain detector position, UL/ULC listed.
A sounder base that takes the same address as its detector but uses its own device type on the loop, and recognises the System Sensor synchronisation protocol.
The plug-in base for Morley Advanced intelligent sensor ranges, in the ivory version. The standard MI-B501AP is white and the BK version is black.
The standard base for System Sensor 500, 200, 200+ and 200 Advanced intelligent sensors, with a tamper-resistant option and a break-off address tag.
A two-wire heated base for System Sensor 200 analogue addressable detectors, used where frost or condensation could otherwise cause false alarms.
A universal detector base that fits all Apollo detectors in the Soteria, Discovery and XP95 ranges. It supports isolated and non-isolated devices and has a wide interior for easy access to cables and terminals.
