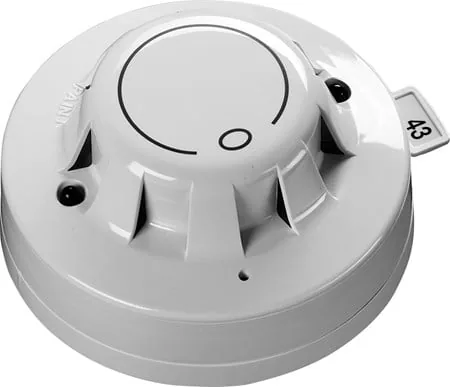

Authorised distributor for ApolloApollo Discovery Carbon Monoxide Detector
An addressable fire detector with a long-life electro-chemical CO sensor that detects smouldering fires and tolerates low levels of common vapours and household products.
- Suited to smouldering fires
- Less prone to false alarms from steam than smoke detectors
- Five response modes
- Remote test feature
- 0 to 50°C, IP54
- 5 year warranty
Specifications
Specifications
| Specification | 58000-300APO |
|---|---|
| Warranty | 5 year |
| Applications | Hotels, Bedrooms, Hospitals, Medium to large buildings, Offices, University campuses, Warehouses |
| Fire Type | Slow burning, smouldering fires |
| Colour | White |
| Weight | 94.2g |
| Materials housing | Polycarbonate |
| Materials terminals | Nickel plated stainless steel |
| Product length | 42mm | 1.65in |
| Product diameter | 100mm | 3.94in |
| Detection principle | Ambient carbon monoxide level. |
| Chamber type | Chevron |
| Analogue value nominal | 25 |
| Analogue value (- tolerance) | 2 |
| Analogue value (+ tolerance) | 2 |
| Analogue value | 25 +2/-2 |
| Alarm level analogue value | 55 |
| Protocol voltage | 5 to 9V peak to peak |
| Protocol voltage (max) | 9V |
| Protocol voltage (min) | 5V |
| Power-up surge current | 1mA |
| Maximum power-up time | 10 seconds |
| Status indicator: Alarm | Red |
| Quiescent current | 500μA |
| Quiescent current tested at | 24V dc |
| Terminal functions L2 | +L2, Loop in & out positive |
| Terminal functions L1 in | -L1 in Loop in & out, double terminal |
| Terminal functions +R | +R, Remote indicator positive connection |
| Terminal functions -R | -R, Remote indicator negative connection |
| Polarity | L1 &, L2 are polarity sensitive |
| Humidity (max) | 15%, RH |
| Humidity (min) | 90%, RH |
| Humidity Note | no condensation or icing |
| Humidity | 90% to 15% (no condensation or icing) |
| Operating temperature | 0 to 50°C | 32 to 122°F |
| Operating temperature (max) | 50°C | 122°F |
| Operating temperature (min) | 0°C | 32°F |
| IP rating Value | IP54 |
| Storage temperature (max) | 10°C |
| Storage temperature (min) | 30°C |
| Storage temperature | 30 to 10°C |
Specifications as published by Apollo. Please confirm the exact model with us before ordering.
