Apollo Soteria Optical Smoke Detector
An addressable optical smoke detector using Apollo's PureLight sensing technology for false alarm management and reliability, suited to slow burning, smouldering fires.

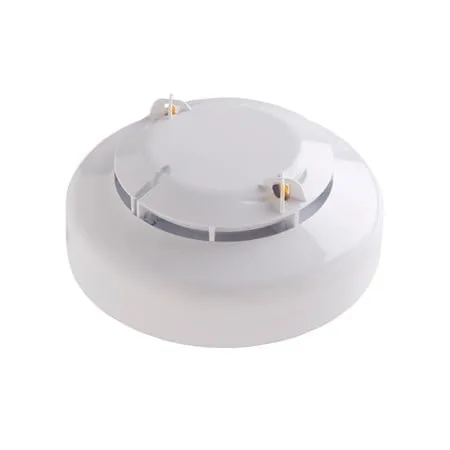

Authorised distributor for ApolloApollo Soteria Heat Detector
An addressable heat detector with two heat sensors placed laterally for accurate detection in all orientations, and eight response modes for a wide range of application temperatures.
- Eight response modes covering EN 54-5 classes A1R, A2R, A2S, BR, BS, CR and CS
- Digital CoreProtocol communication
- Dynamic algorithm for transient rejection and drift compensation
- FasTest and integrated switchable isolator
- -40 to 70°C, IP54
- EN 54-5 and EN 54-17, with LPCB, SBSC, BOSEC, FG, VdS and CPR approvals
Standards and approvals: EN 54-5, EN 54-17, LPCB, SBSC, BOSEC, FG, VdS, CPR
Specifications
Specifications
| Specification | SA5100-400APO |
|---|---|
| Warranty | 10 year |
| Applications | Car parks/loading bays, Warehouses |
| Heat classification | A1RA2RA2SBRBSCRCS |
| Colour | White |
| Finish | Gloss |
| Sensor configuration | Dual exposed heat sensing thermistors. |
| Weight | 90g |
| Materials housing | Polycarbonate |
| Materials terminals | Tin plated stainless steel |
| Product diameter | 100mm | 3.94in |
| Detection principle | Temperature sensitive resistance. |
| Protocol voltage (min) | 5V |
| Protocol voltage (max) | 13V |
| Protocol voltage | 5 to 13V peak to peak |
| Power-up surge current | 0.56mA |
| Status indicator: Alarm | Red |
| Status indicator: Fault | Flashing yellow |
| Quiescent current | 350μA |
| Quiescent current tested at | 24V dc |
| Terminal functions L2 | +L2, Loop in & out positive |
| Terminal functions L1 in | -L1 in, Loop (isolated) negative |
| Terminal functions L2 out | -L1 out, Loop (isolated) negative |
| Terminal functions +R | +R, Remote indicator positive connection |
| Terminal functions -R | -R, Remote indicator negative connection |
| Polarity | L1 &, L2 are polarity sensitive |
| Status indicator: Isolate | Yellow |
| Status indicator: Poll | Green |
| Humidity (min) | 0%, RH |
| Humidity (max) | 95%, RH |
| Humidity Note | no condensation or icing |
| Humidity | 0% to 95% (no condensation or icing) |
| Operating temperature (min) | -40°C | -40°F |
| Operating temperature (max) | 70°C | 158°F |
| Operating temperature | -40 to 70°C | -40 to 158°F |
| IP rating Value | IP54 |
Specifications as published by Apollo. Please confirm the exact model with us before ordering.
