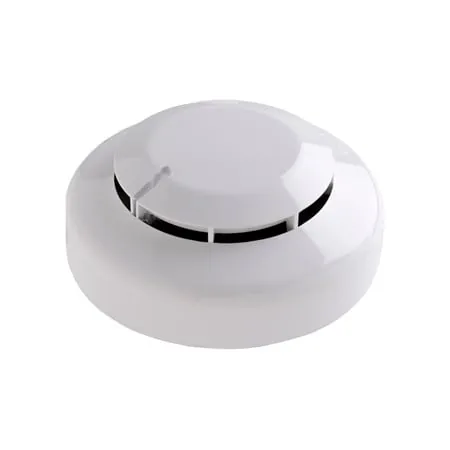

Authorised distributor for ApolloAn addressable optical smoke detector using Apollo's PureLight sensing technology for false alarm management and reliability, suited to slow burning, smouldering fires.
Standards and approvals: EN 54-7, EN 54-17, SBSC, BOSEC, FG, LPCB, VdS, CPR
| Specification | SA5100-600APO |
|---|---|
| Warranty | 10 year |
| Applications | Bedrooms, Cafes, Escape routes, Hotels, Restaurants, RetailB&Bs/guest houses, Offices, University campuses |
| Fire Type | Slow burning, smouldering fires |
| Colour | White |
| Finish | Gloss |
| Sensor configuration | Chamber with surface-mount infrared emmiter and prism., Solid state integrated photo-diode and amplifier. |
| Weight | 95g |
| Materials housing | Polycarbonate |
| Materials terminals | Tin plated stainless steel |
| Product diameter | 100mm | 3.94in |
| Detection principle | Photo-electric light scattering. |
| Analogue value nominal | 23 |
| Analogue value (- tolerance) | 0 |
| Analogue value (+ tolerance) | 4 |
| Analogue value | 23 +4/-0 |
| Alarm level analogue value | 55 |
| Chamber type | Pure, Light |
| Protocol voltage | 5 to 13V peak to peak |
| Protocol voltage (max) | 13V |
| Protocol voltage (min) | 5V |
| Power-up surge current | 0.56mA |
| Status indicator: Alarm | Red |
| Status indicator: Fault | Flashing yellow |
| Quiescent current | 350μA |
| Quiescent current tested at | 24V dc |
| Terminal functions L2 | +L2, Loop in & out positive |
| Terminal functions L1 in | -L1 in, Loop (isolated) negative |
| Terminal functions L2 out | -L1 out, Loop (isolated) negative |
| Terminal functions +R | +R, Remote indicator positive connection |
| Terminal functions -R | -R, Remote indicator negative connection |
| Polarity | L1 &, L2 are polarity sensitive |
| Status indicator: Isolate | Yellow |
| Status indicator: Poll | Green |
| Sampling frequency | Once per second |
| Humidity (max) | 95%, RH |
| Humidity (min) | 0%, RH |
| Humidity Note | no condensation or icing |
| Humidity | 0% to 95% (no condensation or icing) |
| Operating temperature | -40 to 70°C | -40 to 158°F |
| Operating temperature (max) | 70°C | 158°F |
| Operating temperature (min) | -40°C | -40°F |
| IP rating Value | IP44 |
| Effect of wind speed | None |
| Wind speed test | Tested up to 10m/s |
Specifications as published by Apollo. Please confirm the exact model with us before ordering.
