Apollo Soteria Optical Smoke Detector
An addressable optical smoke detector using Apollo's PureLight sensing technology for false alarm management and reliability, suited to slow burning, smouldering fires.

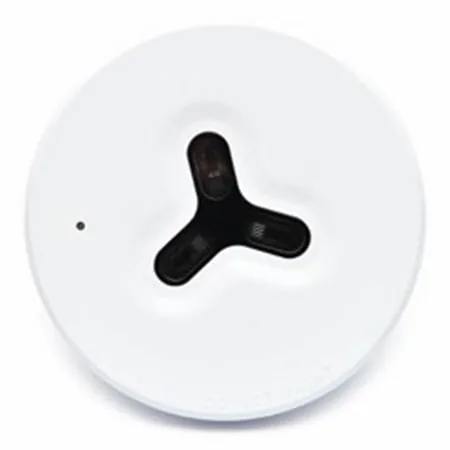

Authorised distributor for ApolloApollo Soteria Dimension Optical Smoke Detector, Flush Mounted, White or Black
A low profile, flush mounted optical smoke detector with no chamber, a design that sets it apart from standard detectors. It uses CoreProtocol and comes in white and in black.
- Chamberless, flush mounted, low profile design
- Integrated switchable isolator
- DIL switch addressing
- Tri-coloured LED status indicator
- Drift compensation and FasTest listed on the white version
- EN 54-7 and EN 54-17 certified, LPCB and CPR approvals
Standards and approvals: EN 54-7, EN 54-17, LPCB, BOSEC, VdS, CPR
Specifications
Specifications
| Specification | FL5100-600APO | FL5100-660APO |
|---|---|---|
| Warranty | 10 year | 10 year |
| Colour | White | Black |
| Weight | 146g | 146g |
| Materials housing | Polycarbonate | Polycarbonate |
| Materials terminals | Nickel plated stainless steel | Tin plated stainless steel |
| Product diameter | 140mm | 5.51in | 100mm | 3.94in |
| Product depth | 38.2mm | 1.5in | |
| Detection principle | Photo-electric light scattering. | Photo-electric light scattering. |
| Analogue value nominal | 23 | 23 |
| Analogue value (- tolerance) | 0 | 0 |
| Analogue value (+ tolerance) | 4 | 4 |
| Analogue value | 23 +4/-0 | 23 +4/-0 |
| Alarm level analogue value | 55 | 55 |
| Protocol voltage | 5 to 13V peak to peak | 5 to 13V peak to peak |
| Protocol voltage (max) | 13V | 13V |
| Protocol voltage (min) | 5V | 5V |
| Power-up surge current | 1mA | 0.56mA |
| Quiescent current | 1000μA | 350μA |
| Quiescent current tested at | 24V dc | 24V dc |
| Supply voltage (max) | 35V dc | |
| Supply voltage (min) | 17V dc | |
| Supply voltage (Vmin-Vmax) | 17 to 35V dc | |
| Terminal functions L2 | +L2, Loop in & out positive | +L2, Loop in & out positive |
| Terminal functions L1 in | -L1 in, Loop (isolated) negative | -L1 in, Loop (isolated) negative |
| Terminal functions L1 out | +L1 out | |
| Terminal functions +R | +R, Remote indicator positive connection | +R, Remote indicator positive connection |
| Terminal functions -R | -R, Remote indicator negative connection | -R, Remote indicator negative connection |
| Polarity | L1 &, L2 are polarity sensitive | L1 &, L2 are polarity sensitive |
| Sampling frequency | Once per second | Once per second |
| Humidity (max) | 95%, RH | 95%, RH |
| Humidity (min) | 0%, RH | 0%, RH |
| Humidity Note | no condensation or icing | no condensation or icing |
| Humidity | 0% to 95% (no condensation or icing) | 0% to 95% (no condensation or icing) |
| Operating temperature | -20 to 55°C | -4 to 131°F | -40 to 70°C | -40 to 158°F |
| Operating temperature (max) | 55°C | 131°F | 70°C | 158°F |
| Operating temperature (min) | -20°C | -4°F | -40°C | -40°F |
| IP rating Value | IP55 | IP44 |
| Applications | Bedrooms, Cafes, Escape routes, Hotels, Restaurants, RetailB&Bs/guest houses, Offices, University campuses | |
| Fire Type | Slow burning, smouldering fires | |
| Finish | Gloss | |
| Sensor configuration | Chamber with surface-mount infrared emmiter and prism., Solid state integrated photo-diode and amplifier. | |
| Chamber type | Pure, Light | |
| Status indicator: Alarm | Red | |
| Status indicator: Fault | Flashing yellow | |
| Terminal functions L2 out | -L1 out, Loop (isolated) negative | |
| Status indicator: Isolate | Yellow | |
| Status indicator: Poll | Green | |
| Effect of wind speed | None | |
| Wind speed test | Tested up to 10m/s |
Specifications as published by Apollo. Please confirm the exact model with us before ordering.
